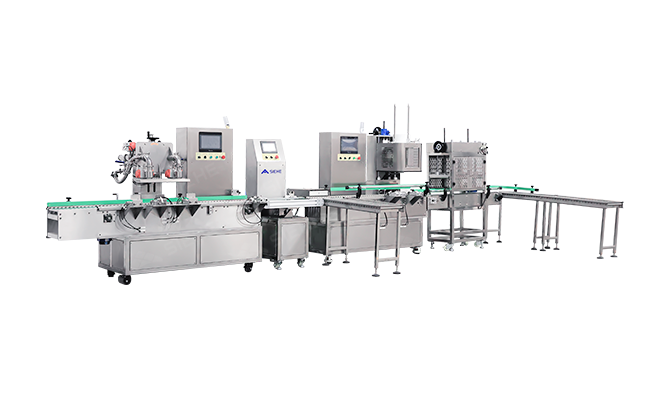

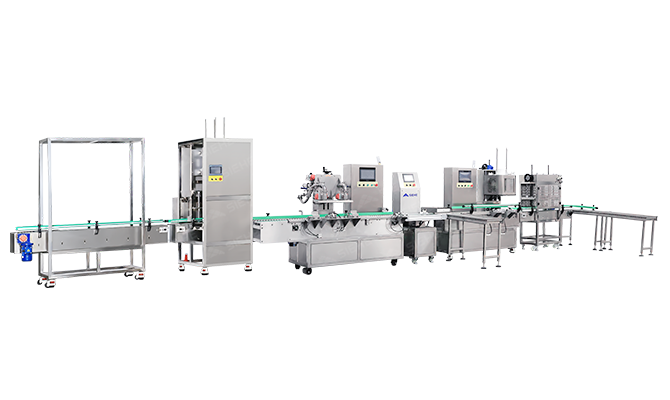

Liquid Automatic Filling Machine
Liquid automatic filling machine is composed of pails on system, filling system, lid on and lid closing system, stacking system, etc., under the electrical control to complete automatic bucket loading, quantitative filling, capping, detecting, palletizing, pre-stacking, stowing and pushing barrel and automatic output., filling speed, high precision, high degree of automation, widely used in daily chemical, food, medicine, beverage and other industries. The filling system can be divided into volume type (by adjusting the volume of the plunger to achieve the control of the filling amount) and weighing type (by the load sensor output signal control), to meet a variety of filling needs.
Product Overview
| Materials Viscosity | ≤50,000 cps |
| Production Capacity | 5-50L |
| Applicable Industry | Suitable for filling of materials in industries such as coating, ink, adhesive(glue), resin, chemical solvent, lubricant, pesticide, etc. (For more application industry, please click “Free Consultation”) |
| Applicable Materials | Materials shall be with viscosity less than 100,000cps, liquid or slurry with a certain liquidity such as edible oil, emulsion paint, color paste, industrial paint, curing agent, organic solvent, water-based ink, suspension concentrate, adhesive, detergent, etc. |
Working Principle
Automatic pail on system: Place the pails with same specification and size neatly in the designated position, a professional manipulator precisely fetches one pail, put on the roller. And then the pails will be conveyed to the filing heads precisely.
Automatic filling system: Filling device is equipped with automatic meter, when the pails conveyed to the filling heads the materials will be filed to the pals as per the pre-set weight., When it comes up to the pre-set weight, it will stop fling automatically.
Automatic lid on and lid closing system: The filled pals will be precisely conveyed to the lid arranging device, a manipulator will suck a lid and put it on the pail precisely. And then the pals will be conveyed to the lid closing station. Then the lid closing device will close the lid precisely. one pail filling is finished.
Automatic stacking system: The filled pails are conveyed to the automatic stacking device. With a professional manipulator, it sucks the filled pails to the designated position on the pallet until the quantity of pails comes up to pre-set value. The ready pallet will be pushed to the next position automatically.
Product Advantages
-
High efficiency, wide application
Filling head can use single or double, adopt double speed (slow and fast) filling, can effectively improve the filling speed; Use automatic barrel pick and take equipment, to accelerate the convey speed. Adopting linear filling, suitable for various specifications of bottle shapes, easy to adjust.
-
High degree of automation, saving the cost of production
The whole line just need operator to put the accumulated barrels to the rail to finished the barrel dividing, filling, packaging, stacking operation. Use forklift to remove the finished product storage tray to the warehouse, then the whole filling procedure is finished; PLC control, and can be remotely operated; The whole line can save more than 80% manual work, in today's high labor costs, it can greatly reduce the production cost.
-
Convenient operation, easy maintenance
Improved design on the basis of similar foreign similar product, the machine has added some additional features design, which makes it easier, convenience, stable and reliable in operation, accuracy, install and adjust, cleaning and maintenance.
-
Environmental protection index outstanding and safe
Full pneumatic control meets the requirements of explosion-proof; Immediately after filling, the lid-clamping and lid-pressing finished quickly, less solvent evaporation, and the environment is good.
Related Video
Technical Parameter
| Model | Power Supply | Air Source
（Mpa） |
Filling Range
（kg） |
Filling Speed
（Can/min） |
Division Value
(g) |
Filling Accuracy
（kw） |
Barrel Dimension
(mm) |
Dimension
(mm) |
| SGZC-A-30 | 220V，50HZ | 0.5 | ≤30 | 5-12 | 10 | ±0.2% | ≤Φ150-350* | 18000×4500×2500mm |
| h120-370 | ||||||||
| SGZC-A-50 | 220V，50HZ | 0.5 | ≤50 | 3-10 | 10 | ±0.2% | ≤Φ150-350* | 19500×4500×2500mm |
| h120-370 |
* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc., detail data is required for correct model selection.
* If any change in the above table, subject shall prevail without notice.
* The table cannot include all products, please contact with our sales engineers for more information.
