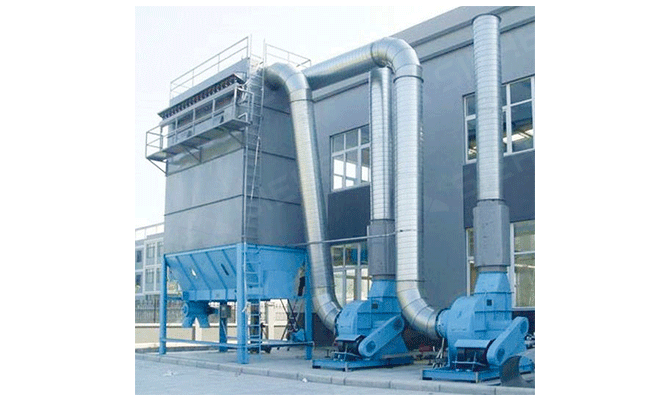

Bag Type Dust Collector
Bag-type Dust Collector is a dry dust filtering device. It is suitable to catch tiny, dry and not-fiber powder. The filter bag is made of woven or non-woven cloth, taking use of the fabric filtering function. When gas with a contain dust content goes into bags, big particles fall to dust hopper as the gravity, and small ones stopped at the filtering cloth as its filtration of fabric, therefore, gas is cleaned.
Product Overview
| Dust Concentration | Inlet＜200g/m³，Outlet＜50mg/m³ |
| Filtration Area | 24~84㎡ |
| Application Industry | Suitable for dust collect of food, paper making, metallurgy, pharmacy, environment protection, chemical industry, dye, etc. industries. (more information please click FREE CONSULTATION) |
| Applicable Materials | All positions where there is raise dust, especially for power ex-proof factories and industries has high requirements to tail gas treatment, such as pigment, ceramic materials, aluminium oxide, quartz sand, food additive, metal powder, Chinese herbal medicine and etc. |
Working Principle
Air Jet Grinder form a whole set of crushing system with cyclone separator, dust collector, Induced draft fan. Compressed air, after filtration and drying, will spray into the grinding chamber in a high-speed by laval nozzle; in the intersection of strains of high pressure air flow, the material is repeated collision, shearing and crushing, under the action of the draught fan, the crushed material is rising to the classification area with the updraft movement, under the strong centrifugal force the high speed rotating of the stage turbine bring out, the material was separate according to the different fineness, the fine particles which meet the requirement of the particle size will enter into the cyclone separator and the dust remover collection by hierarchical wheel, coarse particle decreased to the crushing zone and continue to grind.
Product Advantages
-
1. High efficiency, normally above 99% and the dust concentration is below tens of mg/m³, high resolution ratio to submicron fines.
2. Wide range of capacity, min. several cubic meters per minute and max. thousands of cubic meters per minute.
3. Simple structure, easy to operate, easy to change bags and long usage life.
4. Lower cost comparing with electrical dust collector at same efficiency.
5. Can be used in high temperature surroundings if change fiberglass, PTEF, P84 and etc heat resistance materials as filtering cloth.
6. Insensitive to powder feature and electric resistance.
Technical Parameter
| Model | Blast Capacity
(m³/h) |
Filtration Area
(㎡) |
Air Speed
(m/min) |
Q’ty of bags/Strip | Air Consumption to deash
(m3/min) |
Q’ty of pulse valves
(piece) |
Power
(KW) |
Weight
(Kg) |
| SCCD-24 | 1500-2100 | 24 | 1.0~1.5 | 32 | 0.10 | 4 | 1.5 | 1350 |
| SCCD-36 | 2100-3200 | 36 | 1.0~1.5 | 48 | 0.14 | 6 | 3.0 | 1620 |
| SCCD-48 | 2900-4300 | 48 | 1.0~1.5 | 64 | 0.20 | 8 | 3.0 | 1850 |
| SCCD-60 | 4000-6000 | 60 | 1.1~1.7 | 80 | 0.24 | 10 | 5.5 | 2360 |
| SCCD-72 | 5200-7000 | 72 | 1.2~1.7 | 96 | 0.29 | 12 | 5.5 | 2800 |
| SCCD-84 | 6000-9000 | 84 | 1.2~1.8 | 112 | 0.34 | 14 | 7.5 | 3200 |
* Details are essential to choose a proper device if there are special working conditions, i.e., high temperature, high pressure, combustible, explosive, corrosivity and etc.
* If there are any changes of data and pictures, right data is subjected to the real product.
* Data and pictures excludes every product, please contact with our sales engineer to get more information.
