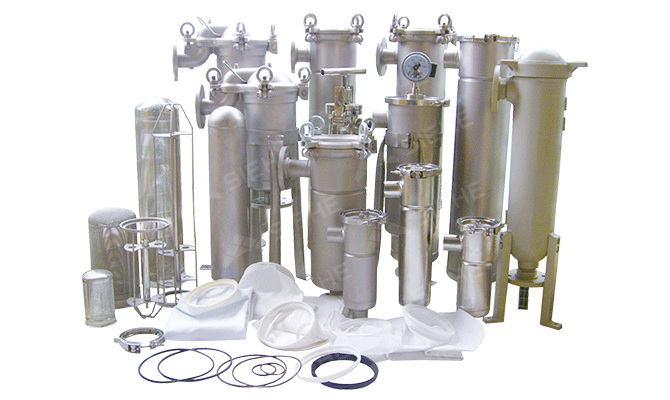

Bag Type Filter
Bag-type Filtrating system is a new type filtrating system. Liquid flows into filtering bag inside supported by metal net basket from inlet, and comes out from the outlet of filtering bag. Impurities are left on the bags and the machine can be continually used by replacing bags. The bag-type filter is mainly used of coarse filtration. A pressure gauge is equipped for reminding the bag replacement when the pressure is too high.
Product Overview
| Materials Viscosity | ≤50,000 cps |
| Filtration Accuracy | 0.5-1,000um |
| Application Industry | Suitable for filtrating materials in industries such as food, paint, ink, adhesive, pigment, fertilizer, water treatment, paper making etc. (For more application industry, please click “Free Consultation”. |
| Applicable Materials | Applicable for all kind of materials with viscosity less than 100000 cps, filtration accuracy shall be more than 0.5um such as emulsion paint, industrial paint, water-based ink, pesticides, adhesives etc. |
Working Principle
Bag-type Filter, a pressure type filter, mainly consists of filter shell, filter shell cover and quick-open structure, stainless steel filtration bag with strengthened net etc. Liquid goes into the filter through the inlet on the side of the device shell. The filter bag itself is in the strengthened net basket, qualified liquid can be obtained after going through the filter bag with required filtration level because all the impurity particles are blocked by the filter bag during this process. It is easy to change the filter bag and generally no materials loss during the filtration process.
Product Advantages
-
Better Sealing
Bag type Filter from Siehe Industry is with special sealing structure, combining with special sealing ring and special mouth of the filter bag, it can avoid any possible materials leakage.
-
Easy to replace, safe and energy saving
With advantages of little probability of side leakage, high filtration accuracy is ensured, and it is quick to change the bags. Bag-type filter can bear big working pressure, little pressure loss, low running cost and energy saving.
-
High filtration accuracy, wide application range
With high filtration accuracy, suitable for any tiny particles and suspensions with filtration range from 0.5um to 200um.
Related Video
Technical Parameter
| Max. Flow | Filtration Fineness |
| 40 m³/h | 0.5-1500 μm |
