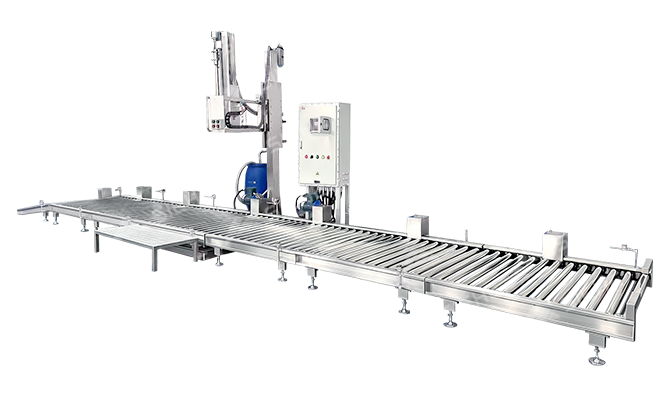

IBC Drum (Four-drum) Automatic Filling Machine
IBC Drum (Four-drum) Automatic Filling Machine is mainly composed of filling gun device, PLC system control part, weighing system, conveying equipment, etc. It is a highly automated packaging equipment. Its main function is to automatically fill liquid materials into a predetermined weight. During the filling process, it can effectively avoid material spillage, prevent environmental pollution, and protect operators. The system works stably and reliably and is easy to operate. It has a high degree of automation and can realize continuous filling of multiple drums per hour, significantly improving the efficiency of the production line.
Product Overview
| Material Viscosity | ≤50,000 cps |
| Production Capacity | 1000L |
| Application Industry | Various coatings, inks, automotive paints, furniture paints, adhesives (glues), resins, chemical solvents, lubricants, shoe glue, spray glue and other mobile liquid industries. |
| Applicable Materials | The viscosity of the material is below 50,000cps, and the liquid material and slurry with certain fluidity; Such as edible oil, latex paint, color paste, industrial paint, curing agent, organic solvent, water-based ink, pesticide suspension agent, adhesive, detergent and other more than a thousand kinds of materials. |
Working principle
The automatic control instrument receives the weight signal given by the weighing sensor and controls the opening of the feed valve (0-90 degrees) to achieve the purpose of automatic filling; whether the filling head has a lifting function can be designed according to the material characteristics.
Steps:
Manually put the pallet (containing empty drums) into the empty drum position.
Automatically moves the filling nozzle to the drum mouth, positions it, and gives a signal to start filling. Canned in turn.
The controller automatically monitors and feeds back control signals.
According to the control signal and controlled by the solenoid valve, the filling valve realizes the control of large, small and cut off flow.
The filling nozzle lifting control can be designed according to the material characteristics.
Product Advantages
-
Fast Filling Speed and High Efficiency
One-click start to automatically complete the positioning, opening, filling and capping of drums. It is suitable for four-drum filling. Four drums are placed on the pallet at one time for continuous filling, which effectively saves time and space. It can realize continuous filling of multiple drums per hour and significantly improve the efficiency of the production line.
-
Fully Automated Production with High Intelligence
Integrated high-precision flow meter and automatic positioning system to achieve fast and accurate filling of drums. Advanced PLC technology and touch screen interface are used to achieve precise control and monitoring of filling parameters. The user-friendly operation interface makes it easy for employees to set and adjust filling parameters, reducing the difficulty of operation.
-
Durable, Safe and Stable
The equipment is equipped with emergency stop button, leak detection and explosion-proof design to ensure safety during operation. Corrosion-resistant and dust-proof device protects equipment bearing operation and is durable.
-
Excellent Environmental Indicators
Set up an exhaust interface and connect the user's exhaust device to eliminate harmful gases generated during filling. After filling is completed, it can be automatically cleaned according to the preset program to keep the equipment clean.
Technical Parameter
| Filling Capacity | Power Supply | Filling capacity | Air source used | Filling accuracy | Filling gun material | Graduation value | Explosion-proof level |
| IBC drum 1000kg | AC220V 50/60HZ 0.2kw | (12~16 drums/Hr) single head*4 heads (48~64 drums/Hr) | 0.5～0.7 Mpa | ≤0.1% FS | SUS304/SUS316/PTFE (optional) | 0.1kg | ExdllBT4 (optional) |
