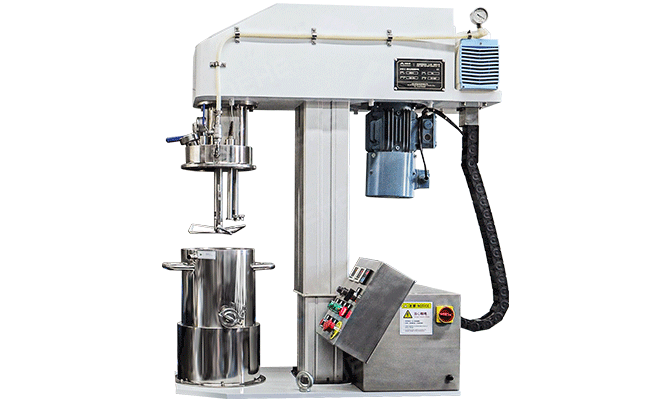

Lab Dual Shafts Butterfly Dispersing Mixer
Lab Dual Shafts Butterfly Dispersing Mixer is a new product developed by SIEHE Industry with dispersing, stirring (scraping) functions for laboratory use. It is good for the materials with mid-and-high viscosity and thixotropy property. Dispersing and mixing of materials can work at same time, which makes it more adaptable. It also can be customized based on the materials property and production technology.
Product Overview
| Materials Viscosity | ≤ 700,000cps |
| Production Capacity | 5 L |
| Application Industry | Suitable for dispersing and mixing materials in industries such as coating, putty, ink, adhesive, lithium battery slurry and etc. (For more application industry, please click "Free Consultation") |
| Applicable Materials | Various slurries with viscosity less than 10,000,000cps, solid content under 90% such as putty, UV ink, structural adhesive, anaerobic adhesive and etc. |
Working Principle
Through the high-speed rotation dispersing disc, the materials will become in annular form flow, resulting in strong vortex flow, which descend down to the bottom of the vortex in spiral state. The strong shear impact and friction between the particles achieve rapid dispersion and dissolution function. The butterfly agitator can produce better radial and axial action, accelerate the material circulation, and improve the dispersion efficiency.
Product Advantages
-
High dispersing and mixing efficiency
The equipment has strong dispersing and shearing force, which can quickly and fully disperse powder materials into liquid materials; the unique angle design of the butterfly agitator has good stirring and mixing effects; double dispersion and mixing ensures product quality and dispersion effect.
-
Safe and easy operation
The equipment uses the electric push rod as the lifting actuator, simple operation, high stability; Dispersion plate and agitator can be easily disassembled and replaced quickly, easy to clean.
-
Various agitator types
Different design of dispersing discs and agitators based on different production technology and materials property ensures the best dispersing and mixing result. The mixer is equipped with a PTFE wall scraping paddle function to remove mixing dead corners, avoid slurry hanging on the wall, and improve product uniformity.
-
Customized options
Can be customized for various types of non-standard products, such as explosion-proof type, sealed vacuum type，material can be customized according to requirements of SUS304/SS321/SS316L stainless steel.
Technical Parameter
| Model | Voltage | Working Volume (L) |
Motor power
(kw) |
Rotation Speed （rpm） |
Conveying Model | Working model | Lifting
(mm) |
| Disperser | 380V/50HZ/3P | 5 | 1.1 | 100-6000 | V-type belt | Single layer disperser，DN80mm | Electric lifting, stroke 500mm |
| Mixing | 380V/50HZ/3P | 5 | 1.1 | 10-260 | Synchronous belt | Butterfly mixing, DN 200mm,
with PTFE wall scraping paddle, the distance between the paddle and the bottom is ≤4mm |
* The processing capacity in the table is the data measured when "water" is used as the medium. The selection should be calculated based on the viscosity, specific gravity and other parameters of the product.
* If the working condition is high temperature, high pressure, flammable, explosive, corrosive or others, you must provide detailed data for our engineer to customize specially.
* If any change in the above table, subject shall prevail without notice. The correct parameters are subject to the actual product provided.
* The table cannot include all products, please contact with our sales engineers for more information.
