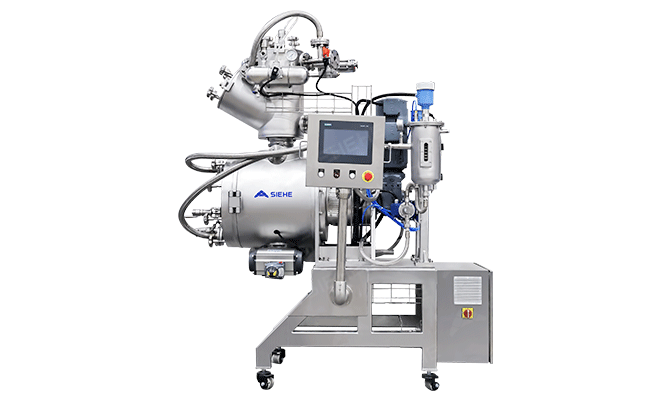

Lab Vacuum Plough Drying Mixer
Lab Vacuum Plough Drying Mixer is a test platform for mixing, drying, reaction and other processes, which is specially developed for scientific research and specifically for situations such as high mixing uniformity, large liquid addition, large material density gap, and fiber content. Special plough type agitator + high-speed fly-cutter agitator design, strong mixing capacity, high uniformity; The machine is made of stainless steel material, the mixing chamber can be completely open, easy to clean after the test, to meet the requirements of the pharmaceutical and food industry, in line with GMP standards. And can customize SS316L stainless steel, SS321 stainless steel, or other high hardness alloy agitators, can also be polyurethane lining or sprayed with high wear-resistant materials (improve working head life, reduce metal pollution); The machine has compact structure, simple operation and easy maintenance.
Product Overview
| Materials Specific Gravity： | ≤3g/cm³ |
| Production Capacity： | 15-30L |
| Application Industry: | Suitable for denatured starch, calcium carbonate, carbon black, lithium battery materials, ceramic materials, fertilizers, magnetic materials and other industry product materials drying, mixing. |
| Applicable Materials: | The specific gravity of the material is less than 3g/cm³ with a certain fluidity, liquid content of less than 30% of the powder or particles, such as pharmaceutical intermediates, modified starch, calcium carbonate, carbon black, flour, graphite, etc. |
Working Principle:
The equipment consists of transmission parts, stirrer, circular barrel, high-speed fly cutter; stirrer plough in high-speed operation of the material in addition to axial dispersion, but also can drive the material along the drum for circumferential flow, materials through the continuous throwing and dispersal of the circular effect, to achieve uniformity of mixing. With the high-speed fly cutter, auxiliary mixing and the role of the lumps of material dispersion and depolymerisation, the material in the plough and fly cutter under the dual role can be evenly mixed in a relatively short period of time.
Lab plough vacuum drying mixer is based on vacuum drying technology, through the generation of vacuum environment, the moisture or solvent of the material to be dried will be evaporated to achieve the purpose of drying.

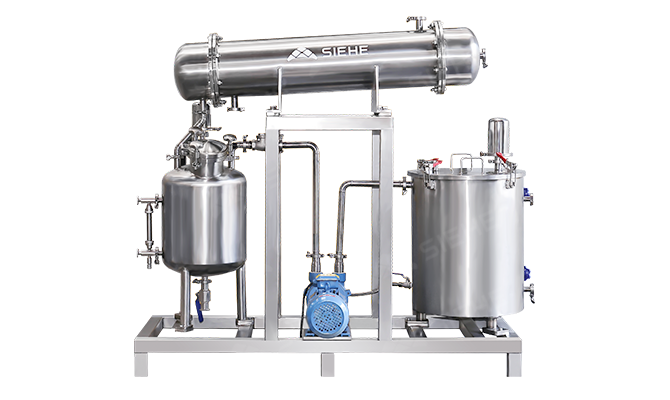

It is mainly composed of vacuum system, dryer, heating device, temperature controller and so on. Among them, the vacuum pump is responsible for generating a vacuum environment and pumping the air out of the barrel; the main part of the dryer is used to place the material to be dried; the vacuum instrument is used to detect the air pressure and vacuum degree inside the box; the heating device is used to heat the material inside the drying barrel, while the temperature controller is used to control the heating temperature so that the drying box can maintain a certain temperature.
Product Advantages
-
Multiple forms of temperature control
The heating unit is generally heated by hot water, hot oil or steam to achieve automatic temperature control. Cooling unit, commonly used for air-cooled or water-cooled cooling units, can achieve automatic temperature control. Ensure that the material is dried within a safe temperature range overheating or undercooling.
-
Vacuum assisted drying system
Vacuum system, according to the requirements of dry moisture, choose different vacuum degree of pump, conventional including water ring pump, rotary vane pump, dry screw pump, etc., vacuum degree can reach -0.09~-0.098Mpa, improve the drying efficiency, equipped with dust collector, maintain a clean environmental protection laboratory environment.
-
Tailored Design
Equipped with high pressure spray system for humidification or adding various auxiliaries, liquid particle size is optional in nanometer or millimeter.
Optional automatic control system, HMI+PLC control mode, with parameter saving and output, easy to save test data and statistics.
Gas explosion proof or dust explosion proof type can be customized.
-
Powerful auxiliary components
It can be used with a variety of components, commonly used are coil steam jacket, honeycomb pressure jacket, circulating medium jacket, online sampling valve, high-speed high-speed fly-cutter, temperature detection, weighing system and other components.
-
-
Technical Parameter
| Model | Voltage | Motor power
(kw) |
Speed
（rpm） |
Fly-cutter speed
（rpm） |
Capacity
(L) |
Discharge port | Material |
| SGZD-50 | 380V/50HZ | 2.2+1.5 | 0-150 | 0-3000 | 15-30 | 90*90mm
Pneumatic flap valve |
SS304/SS316L |
