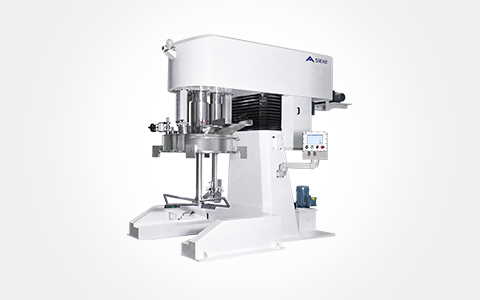

Laboratory Multi-functional Machine

Working Principle:

Disperser: Through the high-speed rotation dispersing disc, the materials will be in annular form flow.        Strong vortex flow is generated, which descend down to the bottom of the vortex in spiral state.     Strong shear impact and friction occur between particles, achieving the functions of rapid dispersion, dissolution and uniform mixing.

Basket mill: The motor drives the lever and bottom dispersing disc to rotate at high speed, which makes the upper part of dispersing disc and inner grinding chamber become vacuum.  The slurry is inhaled into basket grinding chamber. The grinding medium driven by the driving lever inside the chamber produces force in all directions, which put materials under the action of constant collision and friction to smaller the particle size and narrow the particle size range. The vortex flow generated by high-speed rotation dispersing disc absorbs materials out from the chamber, and recycle to the feed again, excellent dispersing and mixing result will be achieved.

Emulsifier: Due to the high tangential speed and high-frequency mechanical effect generated by the high-speed rotation of the rotor, the material is subjected to strong mechanical and hydraulic shear, centrifugal extrusion, liquid layer friction, and impact in the narrow gap between the rotor and the stator. The combined effects of tearing and turbulence allow the immiscible solid phase, liquid phase, and gas phase to be instantly uniformly and finely dispersed and emulsified under the combined action of corresponding mature processes and appropriate amounts of additives. After high-frequency cycles, a stable and high quality product is finally obtained.

Vacuum mixer: Supplied with exclusive vacuum dispersing tank, and tooted disc, butterfly agitator, and propulsion agitator. It can be connected with vacuum device to realize vacuum dispersing and mixing.

Ball Mill: The motor drives the grinding wheel to rotate at high speed, driving the grinding medium in the tank to move at high speed, generating friction and impact force to refine the slurry.
