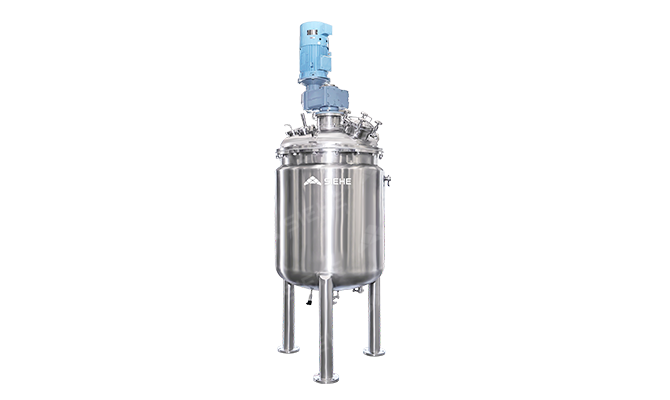

Mixing Vessel

Mixing Kettle, which is used for liquid-liquid or powder-liquid blending and mixing, is a type of large-scale production equipment and has the functions of dispersing, emulsifying, heating and cooling, to fulfill different production process requirement; It can be stably running for long time, has the advantages of small noise, simple operation and strong adaptability, is the ideal multi-functional equipment for mixing and dispersing.

Product Overview

Materials Viscosity ≤500,000 cps
Production Capacity 50-50,000L
Application Industry Used for dispersing and mixing in industries such as biological, pharmaceutical, food, paint, ink, adhesives, dyes, pesticides etc.(for more information please click “FREE CONSULATION)
Applicable Materials  Variety of paste-like materials with viscosity ≤500,000 cps, solid proportion ≤60%; such as latex, industrial paint, water-based ink, pesticides, adhesives, etc.

Working Principle

The agitator rotates towards a fixed direction driven by the power unit; during the rotation, it drives materials to rotate radially and axially. Materials inside the reactor are in both axial and circular motion, generating several forms of mixing such as shearing mixing and diffusion stirring. Thus the material can be effectively rapidly stirred and mixed.

Dispersing disc rotates in high speed, generating annular flow, resulting in strong vortex, thus the materials spirally down to the bottom. Strong shearing and friction force between particles get the mixture rapidly dispersed and dissolved. The circular motion of the stirring disc generates good radial effect, accelerating material circulation, improve the dispersing efficiency.

Precision-engineered stator and rotor match with each other perfectly. High-speed motor drives the rotor to rotate, which generates vacuum condition between the stator and rotor. So materials are sucked into the chamber from the top of the stator &rotor and also from the bottom. Rotor driven by the strong kinetic energy creates high linear speed, which puts the materials under comprehensive action of strong crushing, tearing, centrifugal extrusion, hydraulic friction etc. between the precision-engineered gap of the stator and rotor. After processed, the materials are flying out and generate strong turbulence under the action of forces from different direction. Stable emulsion is obtained after repeated disaggregation, dispersion, homogenization, shearing for a certain period with help of mature production technology and certain quantity emulsifier.

Product Advantages

  • High Mixing Efficiency & High Quality
    Siehe Industry has many years’ experience of mixing kettle application, capable to choose the most suitable agitator and speed according to different materials feature and mixing requirements, thus the liquids will be mixed in cross and turbulent flow, and at the same in axial and radial motion, finally get uniformly mixed after a certain period of time.
  • High-speed Dispersing and Emulsifying, Fulfill More Demands, Cost-effective
    Mixing kettle can be equipped with 1-2 high-speed disperser and emulsifier with the highest speed 2930rpm(normally 1450rpm), velocity above 20m/s, which make sure the powder material can be uniformly dispersed into the liquids; the mixture will be finally dispersed uniformly and shows good suspension effect because of high-shearing force.
  • Easy Maintenance and Cleaning
    The agitator is fixed on the shaft via bolts, easy to remove and disassemble.
  • Non-standard
    Variety of models can be customized, e.g. explosion proof model, vacuum model, scraper model, multi-function model, etc. The equipment material can adopt SS316L or do spray-coating treatment according to client’s requirement.

Technical Parameter

Model Power

(kw)

Speed①

(rpm)

Agitator② Equipment Material③ Capacity④

(kl)

Weight⑤

(kg)

SJBF-1.1 1.1 100

Anchor type, paddle type,

frame type and other types of

agitators don’t share the same

data regarding the viscosity

application, speed, power, etc.

Contact part SS304 ≤0.2 250
SJBF-1.5 1.5 85 Contact part SS304 ≤300 250
SJBF-2.2 2.2 76 Contact part SS304 ≤500 300
SJBF-3.0 3.0 67 Contact part SS304 ≤800 350
SJBF-4.0 4.0 63 Contact part SS304 ≤1000 450
SJBF-5.5 5.5 59 Contact part SS304 ≤1500 350
SJBF-7.5 7.5 59 Contact part SS304 ≤2500 450
SJBF-11 11 53 Contact part SS304 ≤3000 350
SJBF-15 15 53 Contact part SS304 ≤4000 450
SJBF-18.5 18.5 53 Contact part SS304 ≤5000 350
SJBF-22 22 43 Contact part SS304 ≤8000 450
SJBF-30 30 43 Contact part SS304 ≤10000 350
SJBF-200 200 Customized Customized Contact part SS304 Customized Customized

* ①② The agitator type and power can only be confirmed after knowing materials state, viscosity and mixing effect.

* ③Equipment material should be chose according to the corrosive property of the mixture; carbon steel, SS316L or spray coating are for option.

* ④The above-listed capacity data is calculated based on 2,000cps material, when selecting a model, the actual viscosity and specific gravity should be considered.

* ⑤The above-listed data of equipment weight does not contain the kettle/tank weight, and also relates to the agitator type and material viscosity.

* This table does not include all models, for more information, please contact with our sales engineer.
