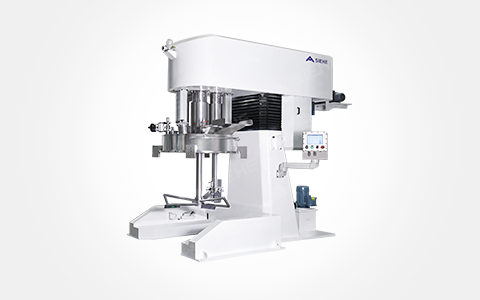

Reciprocating Vacuum Disperser With Scraper
The reciprocating Vacuum Disperser With Scraper is a machine’s dispersing disc can reciprocate up and down under closed mixing conditions, so that the dispersing disc can reach the upper, middle and lower layers of materials in the tank, which has good adaptability to medium and high viscosity and thixotropic materials. The scraper is made of special high-lubricity PTFE or PEEK material, which can easily scrape the material on the tank wall off to improve the mixing and heat exchange effect. It adopts a vacuum-tight design and is matched with various forms of vacuum pumps or pump groups to achieve different vacuum conditions. The maximum vacuum degree can reach -0.099MPa (10mbar), which is suitable for material dispersing and mixing under special conditions such as vacuum degassing, vacuum feeding, and inert gas protection. An extended temperature probe can be designed to detect the material temperature in real time.
Product Overview
| Material Viscosity | ≤200,000 cps |
| Production Capacity | 100-5,000L |
| Application Industry | Suitable for dispersing, mixing materials in industries such as biology, pharmacy, food, paint & coating, ink, adhesive, pigment, fertilizer etc.. (For more application industry, please click “Free Consultation”) |
| Application Materials | Good for all kinds of slurries with viscosity less than 200,000 cps viscosity, and solid content under 60% of all kinds of slurry such as emulsion paint, industrial paint, water-based ink, pesticides, adhesives etc. |
Work principle
Through the high-speed rotation dispersing disc, the materials will become in annular form flow, resulting in strong vortex flow, which descend down to the bottom of the vortex in spiral state. During the process, materials are dispersed, dissolved, mixed and emulsified efficiently due to the strong shearing crash and friction among the particles.
The PTFE scraper rotates sticky to the tank wall, scraping the material off the wall and meanwhile enhancing the circulation of the material.
The hydraulic lifting mixer drives the hydraulic cylinder ascend and descend through the hydraulic pump, driving the whole transmission and working group up and down. And the cover and tank are completely closed to realize vacuum dispersing result with the help of vacuum system.
Product Advantages
-
High-efficiency dispersion
The double-layer high-efficiency dispersing disc adopts German technology, linear velocity is over 25m/s, which can quickly disperse the powder into the liquid. Equipped with a temperature sensor and a pressure sensor to monitor the material temperature in the core area of the cylinder in real time, with accurate measurement and high degree of automation.
-
Discharge clean, easy to maintain
Scraper perfectly solves the problem of materials sticking on the tank wall. PTFE/PEEK scraper is designed to be adjustable, it always clings to the tank wall under the reaction force of materials, with long service life.
-
Integrated control, easy operation, environmentally friendly
Adopt oil cylinder as lifting actuator, with control valve to control the disperser up, stop, down, easy operation and stable. The cover completely closes that produces a space of high vacuum degree to prevent solvent evaporation.. All the working condition can be supervised with the help of the sight glass with a lamp.
-
Customized Options
Can be customized for various types of non-standard products, such as explosion-proof type, heating and cooling type, multi-tank type, construction material can be customized according to requirements of SS304\SS316L stainless steel.
Related Video
Technical Parameter
| Model | Type VKDV | Driving Power
(KW) |
Rotation Speed
(1/min) |
Batch Size
(kg) |
Useable Volume
(L) |
| SFST-11 | VKDV 93-15 FU | 11 | 200 - 3000 | 100-350 | 70-250 |
| SFST-15 | VKDV 180-20 FU | 15 | 170 - 2600 | 200-600 | 150-450 |
| SFST-22 | VKDV 242-30 FU | 22 | 100 - 1650 | 300-1000 | 250-750 |
| SFST-30 | VKDV 332-41 FU | 30 | 100 - 1500 | 350-1250 | 250-1000 |
| SFST-37 | VKDV 411-50 FU | 37 | 90 - 1400 | 500-1500 | 400-1200 |
| SFST-45 | VKDV 491-61 FU | 45 | 90 - 1400 | 600-2000 | 500-1600 |
| SFST-55 | VKDV 601-75 FU | 55 | 85 - 1250 | 800-2500 | 600-1900 |
| SFST-75 | VKDV 790-100 FU | 75 | 70 - 1000 | 1000-3200 | 800-2500 |
| SFST-90 | VKDV 1000-122 FU | 90 | 70 - 950 | 1250-4000 | 1000-3100 |
| SFST-110 | VKDV 1500-150 FU | 110 | 60 - 850 | 1500-5000 | 1200-3900 |
| SFST-132 | VKDV 1500-180 FU | 132 | 55 - 800 | 2000-6000 | 1600-4600 |
| SFST-160 | VKDV 1700-218 FU | 160 | 50 - 700 | 2500-7500 | 1900-5800 |
