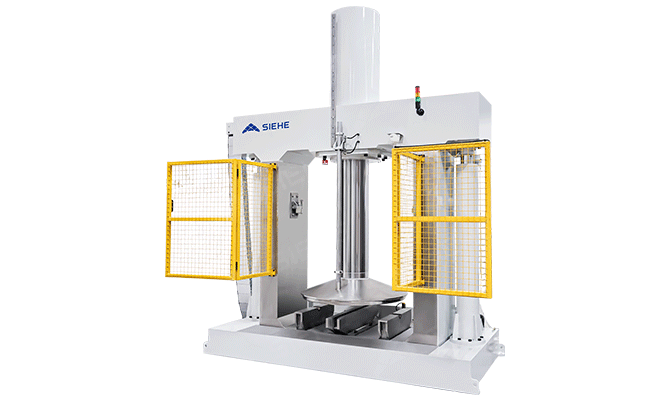

Three-pole Lifting Type Extrusion Machine

Three-pole Lifting Type Extrusion Machine is the supporting equipment for all kinds of high viscosity mixer, its role is to discharge or dispense the high viscosity materials produced by the mixer, and it is also used to take out the materials in the packing barrel; the form has single-cylinder and three-cylinder type, generally hydraulic drive, through the cylinder as a lifting and lowering actuator, with a control valve to control the extruder to rise, stop, and fall, and less often pneumatic drive, which can be the barrel of high viscosity materials, adhesives, inks, resins, etc. through the press plate pressure to the materials from the press plate or the barrel of materials to be removed. It can convey the high viscosity materials such as adhesive, ink, resin, etc. in the barrel to the pipeline through the pressure exerted by the platen to convey the materials to the pipeline from the outlet on the platen or at the bottom of the barrel to realize the purpose of discharging the materials.

The extruder can be designed with different tonnage according to the viscosity of the material and the discharge speed to achieve the pipeline pressure of 5~25bar.

Advantages of the three-column lifting press: different heights can be adjusted to press the material, suitable for different sizes of drums.

Send Mail

Consulting

Product Overview

Material viscosity	≤5,000,000 cps
Production capacity	30-3000L
Application Areas	It is suitable for discharging materials from paint, putty, ink, adhesive, energy, electronic and electrical appliances, pharmaceuticals, cosmetics, food and other industries. (For more applications, please click “Free Consultation”)
Applicable materials	Various kinds of slurries with viscosity below 5,000,000cps and solid content below 90%; such as battery slurry, solder paste, ceramic slurry, silicone ink, sealant, structural adhesive, soft ointment, jam and more than a thousand kinds of materials.

Working Principle

Hydraulic discharging machine consists of base plate, barrel positioning, hydraulic cylinder, beam, motor, gear pump, pressure plate, electric control box and so on. Hydraulic cylinder can be adjusted within the pressure range of 0-20MPa at all levels, the piston rod can stay in any position, and can work continuously under pressure preservation and stabilization; pressure plate rubber ring and container barrel wall contact (with vacuum defoaming device), preventing the material from flowing outward, the container can be discharged without stagnation of the material; lifting support by the hydraulic lifting to the top position, to facilitate the operation of the operator to pack the work, with a simple structure, easy to operate and so on. It is characterized by simple structure and convenient operation.

Product Advantages

Convenient and safe operation
Equipment through the oil cylinder as a lift actuator, with a control valve to control the extruder rise, stop, fall, easy to operate, high stability; equipment with a barrel fixing device, you can quickly fix the barrel to prevent the barrel in the work of the displacement caused by safety accidents, can be set to interlocking device to prevent misoperation.
Wide range of adaptability and high discharging efficiency
It can automatically press the high viscosity material to the next process in a few minutes, and deal with the non-fluid material with viscosity from tens of thousands to millions of CPS; the cooperative use of multiple interchangeable containers and presses can greatly improve the utilization rate of the equipment.
Clean discharge
With a sealing ring matched with the barrel, during the extrusion process, the sealing ring is close to the barrel wall, with no residue on the wall.
Strong non-standardization
Can be customized various types of non-standard products, such as explosion-proof type, vacuum type; according to the form of discharge and the height of the discharge port, can be customized with the barrel lifting extruder, the material can be customized according to the requirements of SS316L stainless steel.

Technical Parameter

Model	Tank total volume (L)	Hydraulic motor power （kw）	Pressing plate dia. (mm)	Pressing stroke （mm）	Tank lifting stroke （mm）	Pressing plate pressure （T）
SYC-30	40	2.2	400	450	No	15
SYC-50	68	2.2	460	550	No	15
SYC-80	107	3	550	600	No	20
SYC-100	140	3	600	650	600	25
SYC-200	280	4	750	800	650	30
SYC-300	400	5.5	850	850	700	50
SYC-500	665	7.5	1000	1000	800	65
SYC-800	1070	11	1200	1100	1000	80
SYC-1000	1320	15	1300	1150	1000	100
SYC-1500	1980	18.5	1450	1350	1100	120
SYC-2000	2550	22	1550	1500	1100	150
SYC-3000	3820	30	1800	1650	1100	200

Remarks:

* The handling capacity in the table is designed with the “viscosity value of 300,000 cps” as a reference, and should be calculated according to the viscosity, characteristics and other parameters of the product when selecting a model.

* Special working condition such as high temperature, high pressure, explosive, combustible and corrosive etc. details are required for correct model selection.

* The data and pictures in this table are subject to change without notice, and the correct parameters shall be based on the actual products provided.

* This table cannot include all products, please contact our sales engineers for more information.
