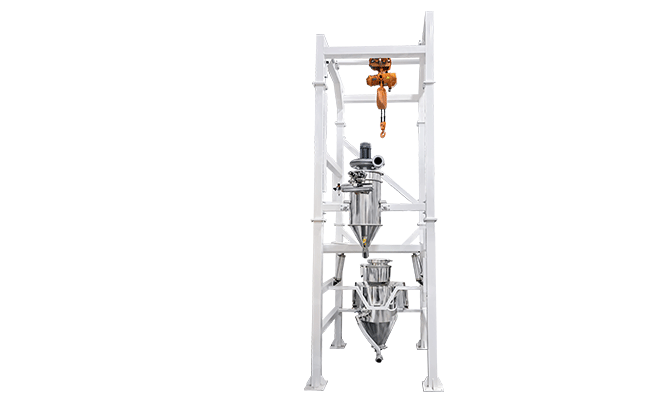

Discharging And Unpacking Feeding Station For Both Small And Ton Bag
Discharging and Feeding Station for both small bag and ton bag is a new developed discharging and feeding system for not only ton bags but also small bags base on the ton bag discharging and feeding station, combined feeding to realize main material and auxiliary material discharged and fed at the same time. Dust removal and sieving function are in options. The machine can be carbon steel or stainless steel. The whole machine is with good airtightness, easy to operate, which improve the working environment and also the production efficiency significantly.
Product Overview
| Raw Materials Package | 10~50 kg, 0.3~2t bags |
| Application Industry | Suitable for industries such as food, pharmaceuticals, fine chemicals, additives, chemicals, plastics, dyes, building materials, etc. |
| Applicable Materials | Powders such as coffee, milk, flour, fungicides, preservatives, flavors and fragrances, aginomoto, powder, glucose, industrial raw materials, PVC powder, ABS powder. |
Product Advantages
-
1. Complete function, available for the material feeding of both small bags and ton bags.
-
2. Easy to operate and to maintain the unpacking of both small bag and ton bag.
-
3. There is pneumatic massage device for ton bag unpacking and vibrator for small bag to ensure smooth material falling, little residue.
-
4. Equipped with dust removal device, no dust leakage during feeding process, good production environment.
-
5. Depending on demand could have different options: dust collector, vibration hopper, air hammer, rotary valve, sieving machines etc..
Technical Parameter
| Technical Parameter | |
| Main structure | Materials unloading station frame support structure, ton bag lifting device, ton bag hanger, massage board for supporting the ton bag, pocket control valves, sealing device. |
| Material hopper | Can combine glove box design realizing 100% isolation of dust/ gas away from operator.
Fluidization is optional and also a block breaking unit can be equipped under the hopper. Can have the hopper with weighing device to realize measuring function. |
| Discharging device | Rotary valve + discharge with specific gravity, screw conveyor, vibrating conveyors, pipe chain conveyors, rotary valve + pneumatic conveying, vacuum conveying, etc; |
| Lifting device | Its own lifting device can hoist the big bag (Ton bag) to the frame, no need for any other help. |
| Capacity | For ton bag, 6-12 bags / hour. For small bag, 60-120bags/hour |
| Arch-breaking way | Normally two ways, one is to have beating device to make the powder in the ton bag falling, the other is to do “ massage” the soft big bag (ton bag) to make the material falling. |
