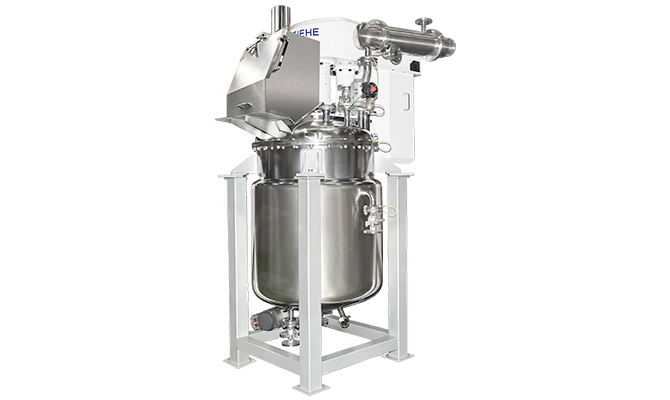

Dispersing Vessel/Kettle
The Dispersing Vessel /Kettle Is a commonly used chemical equipment. Through high-speed rotation of different types of dispersing disc, the materials will become in annular form flow, resulting in strong vortex flow, which descend down to the bottom of the vortex in spiral state. During the process, materials are dispersed, dissolved, mixed and emulsified, reacted efficiently due to the high-speed strong shearing, impact, crushing and dispersion. The material forms a uniform suspension or solution in the vessel, thereby obtaining an ideal dispersion effect. The application field of dispersing tanks is very wide, covering coatings, paints, pigments, food, medicine, electronics, chemicals and etc.
Product Overview
| Material Viscosity | ≤100,000 cps |
| Production Capacity | 50-20,000L |
| Application Industry | Suitable for dispersing and mixing materials in industries such as biology, pharmaceuticals, food, paint, ink, adhesive, pigment, pesticide and etc.. (Please click ‘Free Consultation’ for more information) |
| Application Material | Good for all kinds of slurries with viscosity less than 100,000cps, and solid content less than 60%, such as emulsion paint, industrial paint, water-based ink, pesticide, adhesive and etc. |
Work principle
The dispersing vessel consists of a vessel/kettle, dispersion drive device, control system, heating/cooling system, etc. Through the high-speed rotation dispersing disc, the materials will become in annular form flow, resulting in strong vortex flow, which descend down to the bottom of the vortex in spiral state. During the process, materials are dispersed, dissolved, mixed and emulsified efficiently due to the strong shearing crash and friction among the particles.
Product Advantages
-
Good dispersion effect.
The Max. rotation speed can be up to 2930rpm (For bigger power, 1450rpm), linear velocity is over 20m/s, it can rapidly disperse the powder in the liquid evenly; Due to its high shear forces, the material will be uniformly dispersed and formed a good suspension effect. Due to the strong shearing force, the materials are dispersed evenly and form good suspension effect.
-
Wide range of applications
Dispersing tanks can be used in different fields such as production, metallurgy, food industry, pharmaceutical enterprises and chemical plants because they can be applied to different raw materials and reaction media.
-
Easy operation
The overall structure of the dispersing tank is simple, easy to operate and convenient to maintain.
-
High-efficiency production
The mixing speed of the dispersing tank can be adjusted and the operation is flexible, which can improve production efficiency and reduce production costs.
Technical Parameter
| Model | Motor Power
(kw) |
Speed
(rpm) |
Disc Dia
(mm) |
Material | Capacity
(L) |
Weight
(kg) |
| SFSH-7.5 | 7.5 | 0-1450 | 230 | Contacting part is SS304 | ≤400 | 800 |
| SFSH-11 | 11 | 0-1450 | 250 | Contacting part is SS304 | ≤500 | 1000 |
| SFSH-15 | 15 | 0-1450 | 280 | Contacting part is SS304 | ≤700 | 1100 |
| SFSH-18.5 | 18.5 | 0-1450 | 300 | Contacting part is SS304 | ≤800 | 1300 |
| SFSH-22 | 22 | 0-1450 | 350 | Contacting part is SS304 | ≤1000 | 1400 |
| SFSH30 | 30 | 0-1450 | 400 | Contacting part is SS304 | ≤1500 | 1500 |
| SFSH-37 | 37 | 0-1450 | 400 | Contacting part is SS304 | ≤2000 | 1600 |
| SFSH-45 | 45 | 0-1450 | 450 | Contacting part is SS304 | ≤2000 | 200 |
| SFSH-55 | 55 | 0-1450 | 500 | Contacting part is SS304 | ≤2500 | 2100 |
| SFSH-75 | 75 | 0-1450 | 550 | Contacting part is SS304 | ≤4000 | 2300 |
| SFSH-90 | 90 | 0-950 | 600 | Contacting part is SS304 | ≤6000 | 2600 |
Remarks:
* The capacity is data based on materials with viscosity approx. 2,000cps. The model selection should be based on the data such as the materials viscosity, density etc.
* The equipment weight does not include the weight of the kettle/tank and is related to the form of the agitator and the viscosity of the material.
* The table cannot include all products, please contact with our sales engineers for more information.
* The table is data based on single-shaft mixer, dual-shaft or multi-functional mixing vessel can be customized according to process and material characteristics please contact with our sales engineers for more information.
