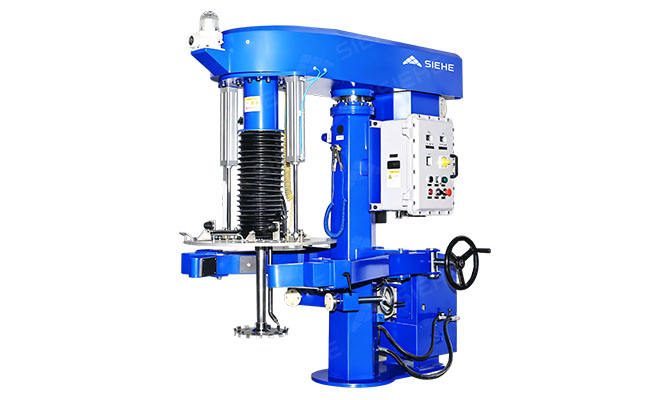

Hydraulic Lifting High Speed Disperser
Hydraulic Lifting High Speed Disperser has dispersing and mixing function, which is used for mass production; With inverter to perform stepless speed adjusting, it can operate for a long time, stable and low noise; Dispersing disc is easy to be disassembled, and according to production technology different size and forms of dispersing discs can be exchanged; Lifting structure adopts hydraulic oil cylinder as actuator, lifting stable, and adopting integrated oil cylinder, environmental and no leakage. It is the ideal choice for solid-liquid dispersing and mixing.
Product Overview
| Materials Viscosity | ≤1,000,000 cps |
| Production Capacity | 20-20,000L |
| Application Industry | Suitable for dispersing, mixing materials in industries such as biology, pharmacy, food, paint & coating, ink, adhesive, pigment, fertilizer etc. (For more application industry, please click “Free Consultation” |
| Applicable Materials | Material viscosity under 100,000 cps, and solid content under 80% of all kinds of slurry such as emulsion paint, industrial paint, water-based ink, pesticides, adhesives etc. |
Work principal
Through the high-speed rotation of dispersing disc, the materials will become in annular form flow, resulting in strong vortex flow, which descend down to the bottom of the vortex in spiral state. During the process, materials are dispersed, dissolved, mixed and emulsified efficiently due to the strong shearing crash and friction among the particles.
The hydraulic pump drives the hydraulic cylinder ascend and descend, which drives the whole transmission and working group up and down.
European synchronous technology double-layer shear dispersion disc, with high dispersion efficiency and high uniformity.
Product Advantages
-
High efficiency, good quality
The Max. rotation speed can be up to 2930rpm (For bigger power, maximum 1450rpm), linear velocity is over 20m/s, it can rapidly disperse the powder into the liquid evenly; Due to its high shear forces, the material will be uniformly dispersed and formed a good suspension effect.
-
Safe and convenient operation
Adopt oil cylinder as lifting actuator, with control valve to control the disperser up, stop, down, It is easy to operated and stable. The dispersing disc is fixed to the main shaft with hexagon socket-head cap screws, which can be disassembled and exchanged quickly, easy to clean. Different dispersing discs can be exchanged accordingly to production process to obtain optimized dispersing result. Different clamping types (Belt Clamping, Manual Rotation Clamping and Pneumatic Clamping) are optional to fix the tanks properly to prevent from accident due to the tank displacement during operation.
-
Various installation ways
With compact structure, the machine can be floor type and platform type. Tank working with the mixer can be removable type or fixed type.
-
Customized Options

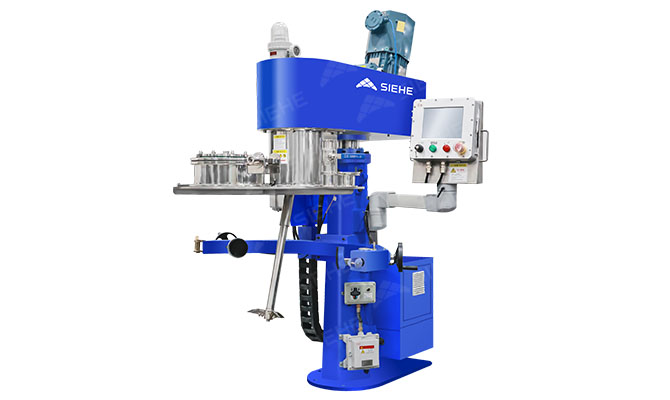

Different options are available such as explosion-proof type, closed type, with lifting cover type, co-axial type/dual-shaft type, multi-tanks type, mounted on kettle type, etc. Construction material can be customized according to requirements.
Related Video
Technical Parameter
| Model | Motor power
(kw) |
Speed
(rpm) |
Disc Dia
(mm) |
Capacity
(L) |
Hydraulic Power
(kw) |
Lifting
(mm) |
Weight
(kg) |
| SFSY-1.5 | 1.5 | 0-1450rpm | 120 | ≤60 | 0.55 | 600 | 400 |
| SFSY-4 | 4 | 0-1450rpm | 200 | ≤200 | 0.55 | 900 | 600 |
| SFSY-7.5 | 7.5 | 0-1450rpm | 230 | ≤400 | 0.55 | 900 | 800 |
| SFSY-11 | 11 | 0-1450rpm | 250 | ≤500 | 0.55 | 900 | 1000 |
| SFSY-15 | 15 | 0-1450rpm | 280 | ≤700 | 0.55 | 900 | 1100 |
| SFSY-18.5 | 18.5 | 0-1450rpm | 300 | ≤800 | 1.1 | 1100 | 1300 |
| SFSY-22 | 22 | 0-1450rpm | 350 | ≤1000 | 1.1 | 1100 | 1400 |
| SFSY-30 | 30 | 0-1450rpm | 400 | ≤1500 | 1.1 | 1100 | 1500 |
| SFSY-37 | 37 | 0-1450rpm | 400 | ≤2000 | 1.1 | 1600 | 1600 |
| SFSY-45 | 45 | 0-1450rpm | 450 | ≤2500 | 1.5 | 1600 | 1900 |
| SFSY-55 | 55 | 0-1450rpm | 500 | ≤3000 | 1.5 | 1600 | 2100 |
| SFSY-75 | 75 | 0-1450rpm | 550 | ≤4000 | 2.2 | 1800 | 2300 |
| SFSY-90 | 90 | 0-950rpm | 600 | ≤6000 | 2.2 | 1800 | 2600 |
| SFSY-110 | 110 | 0-950rpm | 700 | ≤8000 | 3 | 2100 | 3100 |
| SFSY-132 | 132 | 0-950rpm | 800 | ≤10000 | 3 | 2300 | 3600 |
Remarks:
* The capacity is data based on materials with viscosity approx. 1000cps, specific gravity 1g/cm3 as medium. The model selection should be based on the data such as the materials viscosity, density etc..
* Special operation condition, such as high temperature, high pressure, explosive, combustible and corrosive etc., details are required for correct model selection.
* If any change in the above table, subject shall prevail without notice.
* The table cannot include all products, please contact with our sales engineers for more information.
* Models above 10000L need to be customized according to the specific working conditions of the materials.
