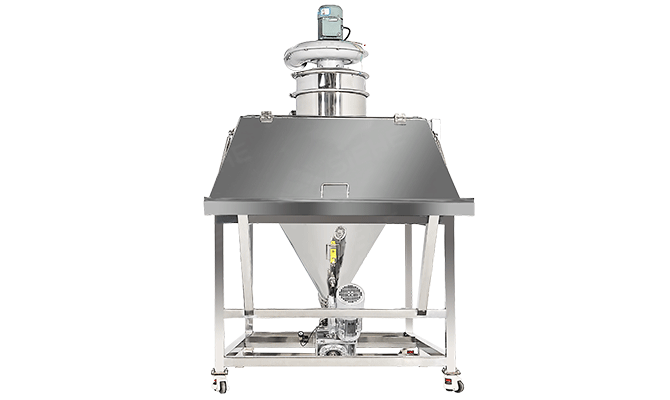

Small Bag Feeding Stations is commonly used for unpacking and discharging for bags (25kg or 50kg) filled with powder or granule materials. The unpacking and discharging work are done through manual bag open, automatic dumping and let the materials fall down by gravity to the storage hopper. The dust generated during operation is collected by the build-in dust collection to ensure clear working environment for operators. According to different production requirements, sieving function is optional to sieve impurities out. And it can also be equipped with vacuum feeding machine to charge materials through vacuum.
Raw Materials Package | 10~50Kg package |
Application Industry | Suitable for industries such as food, pharmaceuticals, fine chemicals, additives, chemicals, plastics, dyes, building materials, etc. |
Applicable Materials | Coffee, milk, flour, fungicides, preservatives, flavors and fragrances, aginomoto, powder, glucose, industrial raw materials, PVC powder, ABS powder |
Technical Parameters | |
Hopper size | 800 * 800 * 1200 mm |
Feeding height | 800 mm |
Sieving mesh | 20 mesh / 40 mesh / 80 mesh (can be customized) |
Vibration motor | 0.3Kw |
Dust removal Motor | 1.1Kw |
Optional | dust collector, pressure bags, vibration hopper, air hammer, rotary valves, etc. |
