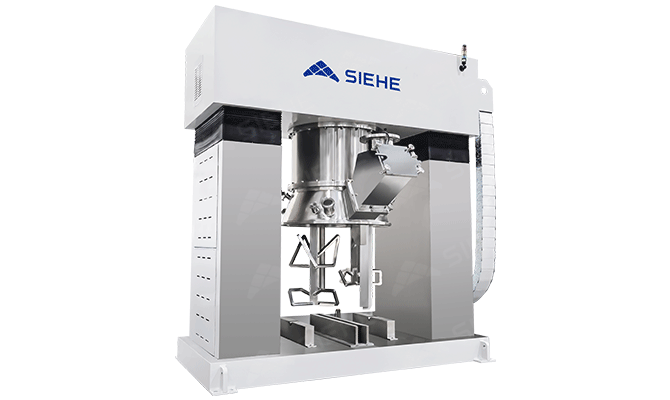

Customized Planetary Dispersing Mixer
Double Planetary Dispersing Mixer includes a low-speed agitator and a high-speed dispersing disc, with good mixing, reaction, dispersion and kneading effects. It is suitable for solid-liquid, liquid-liquid, paste-paste and other materials with different densities and proportions, from low viscosity to high viscosity (10000Pa.s). Due to its large output torque, it is widely used in adhesives, silicone, high-grade inks, putty and other fields. At the same time, the equipment can be equipped with wall and bottom scraper, without dead spots and residues. The 1500L-5000L super-large double planetary disperser produced by SIEHE can be barrel lifting structure, which is stable and reliable, and suitable for automatic batching of raw materials.
Product Overview
| Materials viscosity | ≤10,000,000 cps |
| Production capacity | 2-5,000L |
| Application industry | Suitable for dispersing and mixing materials in industries such as coating, putty, adhesive, battery, electronics & electrical appliances, pharmaceuticals, cosmetics, food etc.. (For more application industry, please click “Free Consultation” ) |
| Applicable materials | Battery slurry, solder paste, ceramic slurry, silicone ink, sealant, structural adhesive, thermal conductive adhesive, ointment, jam and other slurries with viscosity less than 10,000,000cps and solid content less than 90%. |
Product Advantages
-
Diversified agitator structure
SIEHE GROUP can customize more than a dozen agitator combinations such as "double butterfly agitator", "single blade + disperser", "butterfly blade + disperser" according to customer requirements, in line with customers' previous experience and process of using imported equipment to ensure stable product quality.
-
Strong customization
SIEHE GROUP can customize various high-safety (in line with Europe's stringent safety requirements) and easy-to-clean equipment according to customer’s production processes, with various pioneering technologies such as multiple protections against falling for lifting devices, labyrinth seals on planetary box barrel covers to reduce the entry of powder into the top gap, and bolt-free structures on the output shafts of planetary boxes.
-
Updates and development of machine materials
SIEHE GROUP can customize various metal materials such as 304 stainless steel, 316 stainless steel, duplex steel, etc. for the material contact parts according to the customer's materials and production processes. It can also spray various anti-corrosion and wear-resistant materials such as tungsten carbide, aluminum oxide, PTFE, etc. or hard chrome plating on the metal surface.
-
Other customizations
Explosion-proof type (European ATEX standard), high temperature type (maximum temperature 250°C), high vacuum pressure type (mechanical seal structure);
Related Video
Technical Parameter
Optional functional accessories
* Equipped with vacuum system, vacuum degree can reach 20mbar
* Temperature probe that can rotate at any time, multi-point detection of material temperature
* Weighing system
* Automatic control program can be customized, such as formula management
* Customized explosion-proof model
* Container with heating or cooling jacket
* Regional safety protection device
* Mechanical and electrical double protection, anti-fall device
* Internal screwless structure, easy to clean the inside of the equipment, especially for electronic glue products
* Adding labyrinth seal on the basis of independent cover, suitable for gas-containing silicon, fibrous materials with particularly light bulk density, and working conditions effectively prevent lightweight materials from entering the equipment transmission box from the gap between the independent cover and the planetary box, which reduces the risk of power failure in the upper space and is easier to clean
* Completely closed seal can be customized;
