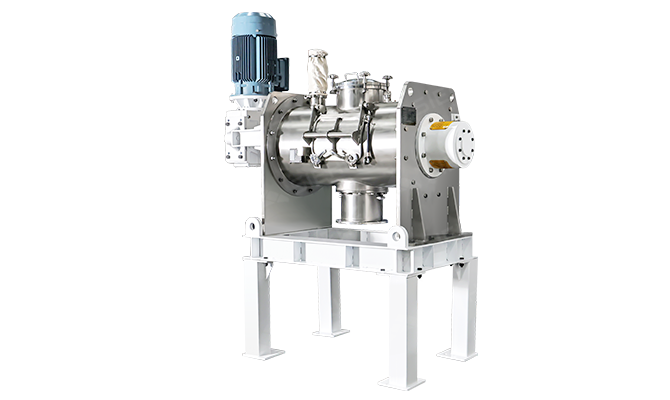

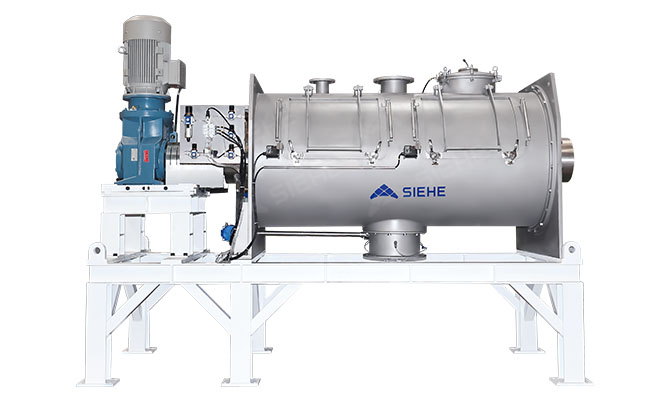

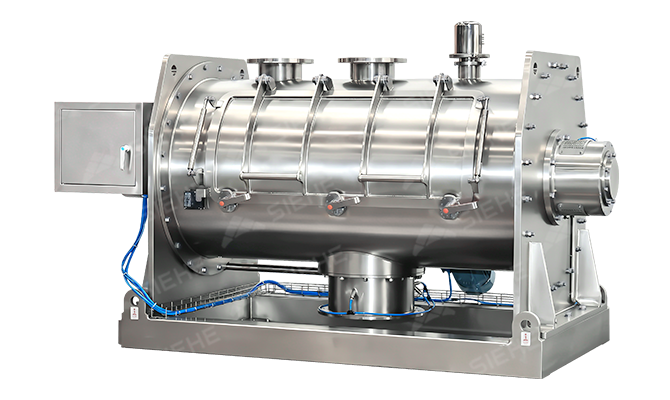

Plough Mixer
Horizontal plough mixer is a Germany-technical late-model mixing equipment with high efficiency, high uniformity, high loading coefficient but low energy cost, low pollution and low crush. The agitator consists of multi-group of plough and fly-cutter which works together to mixing, smash, and dispersing materials. It is widely used in the mixing of powder-powder, powder-liquid and powder-particles, especially for the materials which may get aggregation during mixing. Liquid can be sprayed into powders. Vacuum system and drying system are also in option.
Product Overview
| Materials Specific Gravity | ≤5g/cm³ |
| Production Capacity | 50-30,000L |
| Application Industry | Suitable for the mixing of pharmacy, food, pesticide, dye, chemical industry, plastic, lithium battery, ceramic, chemical fertilizer,rubber, mortar and etc. |
| Applicable Materials | Powders with fluidity whose specific gravity is up to 5g/cm³, liquid content is up to 20%, such as medical intermediate, flavoring, pesticide, reactive dyes, water-free dirt, lithium cobalt oxides battery material and etc. |
Product Advantages
-
Rich Experience & Excellent Design Aptitude
High sealing performance, vacuum system, heating device, all available.
-
Reliable Driving Device
SIEMENS, ABB, SEW and K series spiral cone gear reducer with international brands products, output torque can be output by direct-combination, chain-wheel combination, hydraulic couplers and etc.
-
High Efficient Mixing Device
Plough head with removable design to adjust the gap between the agitator and mixing barre. Surface treatment includes surface carburizing/nitriding, heat treatment, tungsten carbide spray and etc.
-
Main Shaft Agitator
Traditional plough, serration plough, scraper plough; fly-cutter: multi-plate cross cutter, dual-plate lotus cutter and other customized cutters.
Related Video
Technical Parameter
| Model | Power
(kw) |
Speed
(rpm) |
Fly-cutter Power&Q’ty
(kw) |
Fly-cutter speed
(rpm) |
Size
(mm) |
Capacity
(L) |
Size | Weight
(kg) |
||
|---|---|---|---|---|---|---|---|---|---|---|
| length | width | Height | ||||||||
| SHDH-0.05 | 2.2 | 0-150 | 1.5*1 | 2930 | Ø400*418 | 20-30 | 1000 | 700 | 1200 | 260 |
| SHDH-0.1 | 3 | 85 | 3*1 | 1440 | Ø400*800 | 30-60 | 1500 | 500 | 700 | 400 |
| SHDH-0.2 | 4 | 85 | 3*1 | 1440 | Ø500*1000 | 60-120 | 2000 | 600 | 900 | 600 |
| SHDH-0.5 | 7.5 | 62 | 3*2 | 1440 | Ø700*1200 | 150-300 | 2500 | 800 | 1200 | 1100 |
| SHDH-1 | 11 | 62 | 3*2 | 1440 | Ø900*1500 | 300-600 | 2700 | 1000 | 1450 | 1600 |
| SHDH-2 | 15 | 50 | 3*3 | 1440 | Ø1100*2000 | 600-1200 | 3300 | 1200 | 1700 | 2500 |
| SHDH-3 | 18.5 | 50 | 3*3 | 1440 | Ø1280*2250 | 900-1800 | 3800 | 1300 | 1950 | 2900 |
| SHDH-4 | 22 | 42 | 3*4 | 1440 | Ø1400*2700 | 1200-2400 | 4100 | 1400 | 2000 | 4000 |
| SHDH-5 | 30 | 42 | 3*4 | 1440 | Ø1500*3000 | 1500-3000 | 4200 | 1500 | 2000 | 4500 |
| SHDH-6 | 37 | 42 | 3*4 | 1440 | Ø1600*3200 | 1800-3600 | 4500 | 1700 | 2000 | 6000 |
| SHDH-8 | 45 | 33 | 3*5 | 1440 | Ø1650*3750 | 2400-4800 | 5000 | 1800 | 2200 | 7500 |
| SHDH-10 | 55 | 33 | 3*5 | 1440 | Ø1800*4000 | 3000-6000 | 6000 | 1900 | 2500 | 8500 |
| SHDH-15 | 75 | 26 | 3*6 | 1440 | Ø2000*4800 | 4500-9000 | 7000 | 2100 | 2800 | 9800 |
| SHDH-20 | 90 | 26 | 3*8 | 1440/2930 | Ø2200*5600 | 6000-12000 | 8000 | 2400 | 3000 | 13800 |
| SHDH-30 | 132 | 20 | 3*8 | 1440/2930 | Ø2300*7500 | 9000-18000 | 10000 | 2600 | 3500 | 18500 |
