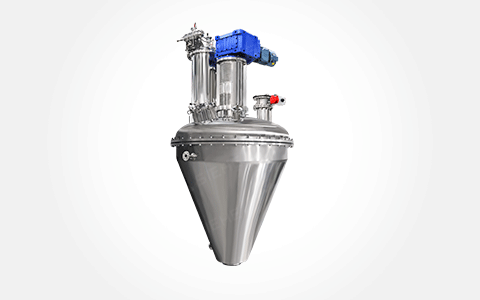

Vertical Conical Ribbon Mixer
Vertical conical ribbon mixer has advantages of good mixing performance, easy to discharge etc. Spray device, heating devices, lifting devices and drying devices are for option. Materials are lifted repeatedly, mist-spraying device uniformly sprays the liquid onto the solid materials, so that they will be well mixed. If this mixer is equipped with heating device, then it will become an ideal drying machine.
Product Overview
| Materials Specific Gravity | ≤3g/cm³ |
| Production Capacity | 50-15,000L |
| Application Industry | Suitable for the mixing of pharmacy, food, pesticide, dyestuff, chemical industry, plastic, ceramic, chemical fertilizer, rubber, etc. |
| Applicable Materials | Powder or particle whose specific gravity is up to 3g/cm³and with certain fluidity, liquid content is under 20%, such as medical intermediate, flavoring, pesticide, reactive dyes ,etc.. |
Product Advantages
-
Stable and Easy to Maintain
Standard driving box ensures the stable operation and low maintenance cost. The agitator adopts cantilevered shaft structure, no contact between bearing end and materials.
Very small gap between agitator and cylinder wall in case of material adhesion. -
Rich Application Experience & Excellent Design Aptitude
Products are designed according to the characteristic of raw and finished materials and manufacturing process(i.e. Pressure requirement, proportion of solid and liquid) to meet the requirements in driving device, operability, sealing effect, etc. areas.
-
Reliable Driving Device
Different driving devices in different capability, power and output speed are for option according to the materials feature, starting methods and mixing method.
-
International Brand Components Used
Driving motor adopts SIEMENS, ABB, SEW, etc. international top-quality brands.
Reducers adopts R series umbrella gear reducer ( or K series spiral cone gear reducer) with advantages of high usage coefficient, large rated torque, high conveying rate, safe, long service life, low noisy, low risk of failure, easy to maintenance, etc..
Technical Parameter
| Model | Power
(kw) |
Thick ness
(mm) |
Capacity
(kg) |
Size(mm) | Weight
(kg) |
|
|---|---|---|---|---|---|---|
| Outer Diam. | Height | |||||
| SVZL-0.1 | 2.2 | 3 | 40-60 | φ715 | 1570 | 220 |
| SVZL-0.3 | 2.2 | 3 | 120-180 | Φ920 | 1930 | 320 |
| SVZL-0.5 | 4 | 3 | 200-300 | Φ1140 | 2320 | 410 |
| SVZL-1 | 7.5 | 3 | 400-600 | Φ1480 | 2870 | 900 |
| SVZL-1.5 | 11 | 4 | 600-900 | φ1630 | 3140 | 1200 |
| SVZL-2 | 11 | 5 | 800-1200 | φ1800 | 3490 | 1300 |
| SVZL-3 | 15 | 5 | 1200-1800 | φ2000 | 3760 | 2400 |
| SVZL-4 | 18.5 | 5 | 1600-2400 | φ2250 | 4425 | 2500 |
| SVZL-6 | 22 | 6 | 2400-3600 | φ2550 | 4940 | 2850 |
| SVZL-8 | 30 | 6 | 3200-4800 | φ2780 | 5360 | 4250 |
| SVZL-10 | 37 | 6 | 4000-6000 | φ3000 | 5815 | 5200 |
| SVZL-15 | 55 | 8 | 6000-9000 | φ3450 | 6540 | 6300 |
