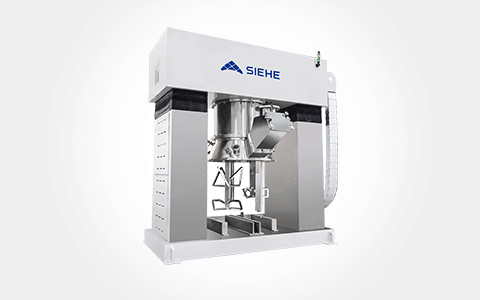

Double Planetary Mixer
Double Planetary Mixer has good mixing, reaction and kneading effects. It is suitable for solid-liquid, liquid-liquid, paste-paste and other materials with different densities and proportions, from low viscosity to high viscosity (10,000Pa.s). Due to its large output torque, it is widely used in adhesives, silicone, high-grade inks, putty and other fields. At the same time, the equipment has the function of wall and bottom scraper, without dead spots and residues.
Product Overview
| Materials viscosity | ≤10,000,000 cps |
| Production capacity | 2-5,000L |
| Application industry | Suitable for dispersing and mixing materials in industries such as coating, putty, adhesive, battery, electronics & electrical appliances, pharmaceuticals, cosmetics, food etc.. (For more application industry, please click “Free Consultation” ) |
| Applicable materials | Various slurries with viscosity less than 10,000,000cps, solid content below 90% such as battery paste, solder paste, ceramic paste, silicone inks, sealants, structural adhesives, soft cream, jam etc.. |
Working Principal
Double Planetary Mixer consists of a reduction motor, planetary frame, scraper, container, hydraulic lifting system and frame. The rotating planetary frame drives the mixing shaft to revolve around the container axis and make a rotational motion, exerting strong shearing and kneading forces on the materials to mix the materials evenly. The scraper installed on the planetary frame rotates with the planetary frame. It is close to the container wall and continuously scrapes the materials off the container wall. The inner wall of the container is precisely lathe-machined and mirror-polished to ensure that the scraper can scrape off all the materials adhering to the container wall without leaving any residue. The blades can also be equipped with scrapers to scrape off the bottom materials to ensure that there is no mixing dead corner and the mixing effect is good. Ensure the stable quality of the finished product.
Product Advantages
-
High mixing efficiency, wide application
The mixing paddle of the double planetary mixer revolves around the axis of the barrel and rotates at high speed at the same time, so that the material is subjected to strong shearing and kneading effects to achieve the purpose of rapid mixing; the mixing paddle has many types such as blade type, twist type, claw type, frame type, etc. The best mixing form can be selected for materials of different viscosities and specific gravities and different production process requirements.
-
Safe and convenient operation
The equipment uses a hydraulic cylinder or electric push rod as lifting actuator, , with a control valve to control the mixer to rise, stop, and fall. It is easy to operate and has high stability; The equipment is equipped with a barrel lock device to prevent the barrel from moving and causing safety accidents during operation. An interlocking device can be set to prevent incorrect operations.
-
No residue on the wall, clean discharging
There is scraper on the planetary frame rotating together with the planetary frame, it clings to the container and scrape the materials on the wall off continuously. The container inner wall is precisely lathed and then mirror polished to ensure the scraper can scrape all materials sticking to the wall off without residue. The blades can also be equipped with scraper for scraping the materials at bottom to ensure without mixing blind spots and excellent mixing result. Finished products with stable quality is ensured.
-
Strong customization
Products can be customized according to process requirements: explosion-proof type (European ATEX standard), vacuum type (vacuum degree can reach 20mbar), heating and cooling type (maximum temperature 250℃), PLC control intelligent type, etc. The material can be customized according to requirements such as SS316L stainless steel, duplex steel or spray special materials.
Related Video
Technical Parameter
| Model | Working volume
(L) |
Design volume
(L) |
Cylinder
specification s (mm) |
Mixing power
(kw) |
Revolution speed & scraping speed
（rpm） |
Rotation speed
（rpm） |
Lifting method | Lifting stroke
（mm） |
Hydraulic power
(kw) |
Vacuum pump power
（kw） |
Weight and dimensions
（mm） |
| SXJB-2 | 2 | 3 | φ180*120 | 0.75-1.5 | 0-65 | 0-100 | Electric lifting | 250 | 0.75 | 0.37 | 600kg
1100*1100*2000 |
| SXJB-6 | 6 | 8 | φ240*180 | 1.5-2.2 | 0-65 | 0-100 | Electric lifting | 300 | 0.75 | 0.37 | 650kg
1100*1100*2000 |
| SXJB-10 | 10 | 14 | φ300*200 | 2.2-4 | 0-65 | 0-100 | Electric lifting | 350 | 0.75 | 0.55 | 700kg
1200*1200*2100 |
| SXJB-15 | 15 | 20 | φ320*250 | 2.2-4 | 0-65 | 0-100 | Electric lifting | 350 | 0.75 | 0.55 | 750kg
1400*1400*2200 |
| SXJB-20 | 20 | 27 | φ350*280 | 3-5.5 | 0-60 | 0-100 | Electric lifting | 400 | 0.75 | 1.1 | 800kg
1450*1400*2200 |
| SXJB-30 | 30 | 40 | φ400*320 | 4-7.5 | 0-60 | 0-100 | Electric lifting | 450 | 1.1 | 1.1 | 900Kg
1620*680*1770 |
| SXJB-50 | 50 | 68 | φ460*410 | 5.5-11 | 0-60 | 0-100 | Electric lifting | 550 | 1.1 | 1.1 | 1840Kg
1750*1300*2250 |
| SXJB-80 | 80 | 107 | φ550*450 | 7.5-11 | 0-60 | 0-100 | Electric lifting | 600 | 1.5 | 1.5 | 2000Kg
1800*1300*2250 |
| SXJB-100 | 100 | 140 | φ600*500 | 7.5-15 | 0-40 | 0-72 | Hydraulic/electric lifting | 650 | 1.5 | 2.2 | 3300 Kg
2350*1400*2050 |
| SXJB-200 | 200 | 280 | φ 750*650 | 15-22 | 0-40 | 0-72 | Hydraulic lifting | 800 | 3 | 2.2 | 4900 Kg
2400*1500*2350 |
| SXJB-300 | 300 | 400 | φ 850*710 | 22-37 | 0-40 | 0-72 | Hydraulic lifting | 900 | 3 | 2.2 | 5980 Kg
2700*2000*2500 |
| SXJB-500 | 500 | 665 | φ 1000*850 | 30-45 | 0-30 | 0-55 | Hydraulic lifting | 1050 | 4 | 4 | 6800 Kg
2700*2000*2950 |
| SXJB-800 | 800 | 1070 | φ 1200*950 | 37-55 | 0-30 | 0-55 | Hydraulic lifting | 1150 | 5.5 | 4 | 9000 Kg
3000*2000*3100 |
| SXJB-1000 | 1000 | 1320 | φ 1300*1000 | 45-90 | 0-30 | 0-55 | Hydraulic lifting | 1200 | 7.5 | 5.5 | 12000 Kg
3300*2300*3400 |
| SXJB-1500 | 1500 | 1980 | φ 1450*1200 | 55-110 | 0-20 | 0-36 | Hydraulic lifting | 1400 | 11 | 5.5 | 17000 Kg
3400*2600*3800 |
| SXJB-2000 | 2000 | 2550 | φ 1550*1350 | 75-132 | 0-20 | 0-36 | Hydraulic lifting | 1550 | 11 | 7.5 | 20000 Kg
3800*2900*4100 |
| SXJB-3000 | 3000 | 3820 | φ 1800*1500 | 90-160 | 0-15 | 0-28 | Hydraulic lifting | 1700 | 15 | 7.5 | 25000 Kg
4300*3200*4600 |
Note:
The data and pictures in this table are subject to change without prior notice. The correct parameters are subject to the actual product provided.
This table does not include all products. Please contact our sales engineer for more information.
4000L/5000L The above selections are customized according to specific material conditions and processes.
