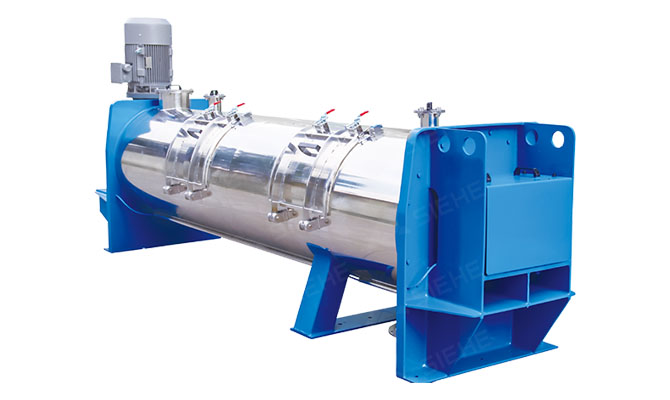

Horizontal Continuous Mixer
This machine is suitable for powder-powder, powder-granule, powder-liquid mixing. Agitators, with a special design in different type (blade, plough, ribbon, etc.) are mounted inside the round, U-shape or O-shape working chamber, materials are fed into the inlet on one end, get mixed inside the chamber and discharge from the outlet on the other end. Normally the materials will stay in the mixer for around 30-120s to implement continuous feeding and discharging.
Product Overview
| Production Capacity | 5-400T/h |
| Application Industry | Food, chemistry, building, mining, environmental protection, etc. (for more information please click FREE CONSULTATION) |
| Applicable Materials | Materials with close proportion, need of short mixing time and good fluidity; such as reactive dye, water-free dirt, slag, fireproofing material, ceramic material, chemical fertilizer, etc. |
| Operation Requirements |
1. The feeding system should be stable and continuous.
2. The feeding speed of each kind of raw material should be proportionally according to the formula. 3. The next process after mixing should deal with the discharged materials in time and not cause blocking. 4. Small amount of material (e.g. ≤5%), should be pre-mixed to enlarge its proportion before feeding to the continuous mixer. 5. The feeding speed of the system determines the capacity of the mixer, and capacity requirement, mixing uniformity, and material feature determine which model to choose. |
Product Advantages
-
Equipment material
Carbon steel, SS304 and SS316L for option, meeting the requirement in sanitation, corrosion and wear-resisting working condition.
-
Different chamber shape optional
U-shape, O-shape, 270º cylinder are for option to meet the different material’s requirements.
-
Different agitator can be customized
Inside and outside Ribbon Agitators
High shear Plough Shear Agitator
Special angle Blade Agitator
Technical Parameter
| Model | Design Volume
（L） |
Size
（mm） |
Production capacity
（m³/h） |
Power
（KW） |
Speed
（r/min） |
Size
（mm） |
Weight
（T） |
|---|---|---|---|---|---|---|---|
| SHLX-2000 | 2000L | Ø1000*2800 | 20~50 | 22 | 60 | 4500*1100*1600 | 3.5 |
| SHLX-4000 | 4000L | Ø1100*4000 | 50~100 | 45 | 50 | 6500*1300*1800 | 5 |
| SHLX-6000 | 6000L | Ø1300*4500 | 80~200 | 75 | 42 | 7500*1500*2000 | 8 |
| SHLX-8000 | 8000L | Ø1400*5200 | 100~300 | 90 | 33 | 8500*1600*2200 | 11 |
| SHLX-10000 | 10000L | Ø1500*6000 | 150~400 | 110 | 28 | 10000*1800*2500 | 14 |
