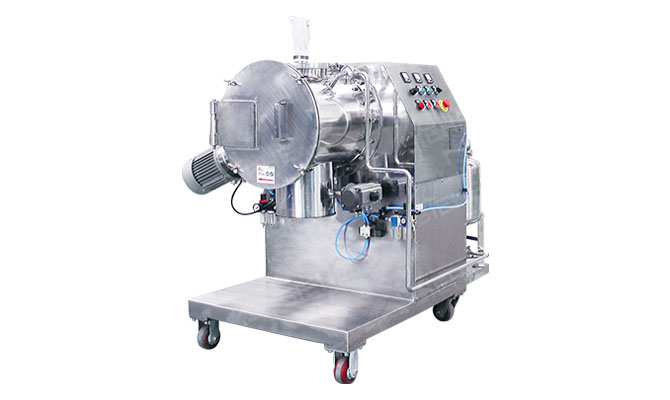

Laboratory Horizontal Mixer
Lab Horizontal Mixer is a horizontal mixing equipment for powder & powder or powder & liquid mixing. The liquid can be added by spray to improve the coating effect. There are many types of agitators, including blade type, plough type, ribbon type and so on. Strong mixing ability and high uniformity. Side door design, easy to feed, but also used for equipment cleaning after the test, to meet the requirements of GMP standards; The machine has compact structure, simple operation and easy maintenance.
Product Overview
| Materials Specific Gravity | ≤3g/cm³ |
| Production capacity | 15-30L |
| Application Industry | Suitable for stirring and mixing of product materials in pharmaceutical, food, pesticides, dyes, chemicals, plastics, lithium battery materials, ceramics, fertilizers, rubber plastics, mortar and etc. |
| Applicable Materials | Various powders with specific gravity below 3g/cm³ and certain fluidity, such as milk powder, food additive, organic chemical fertilizer, dry powder mortar, specific building materials, antiflame materials and etc. |
Working Principle:
The equipment is composed of transmission parts, agitators (blade type, plough type, ribbon type, etc.) and circular barrel bodies; The U-shaped long cylinder structure ensures the small resistance movement of the mixed material (powder, semi-fluid) in the cylinder body. The bottom center is provided with a discharge port, equipped with a pneumatic flap valve, to realize the valve and the barrel body closed without dead Angle, convenient unloading; Overall side openings for cleaning and maintenance. The two sides of the mixing barrel are equipped with blades, which vary in number and shape, and can be designed according to the different requirements of the mixing material. The feed pipe is usually in the upper part of the mixing tank for adding the raw material.
The equipment can be equipped with heating jacket, which can be heated by hot water, hot oil, steam and other heat media; The whole machine is designed as a closed type, which can be connected to the vacuum system to vacuum out the liquid.
Product Advantages
-
Compact structure and uniform mixing
Horizontal structure, small footprint, easy to install and maintain. Side door design, easy to clean.
Through the rotation of the stirring blade or mixing paddle, shearing, diffusion, convection and other effects are generated between different materials, thereby achieving uniform mixing of the materials.
-
Easy Operation
The equipment is simple to operate, maintenance, for laboratory personnel. the same time, is usually equipped with a touch screen display, intuitively monitor and adjust the working parameters.
-
Tailored Design
Different mixing methods can be selected according to different material characteristics and mixing requirements to ensure mixing quality.

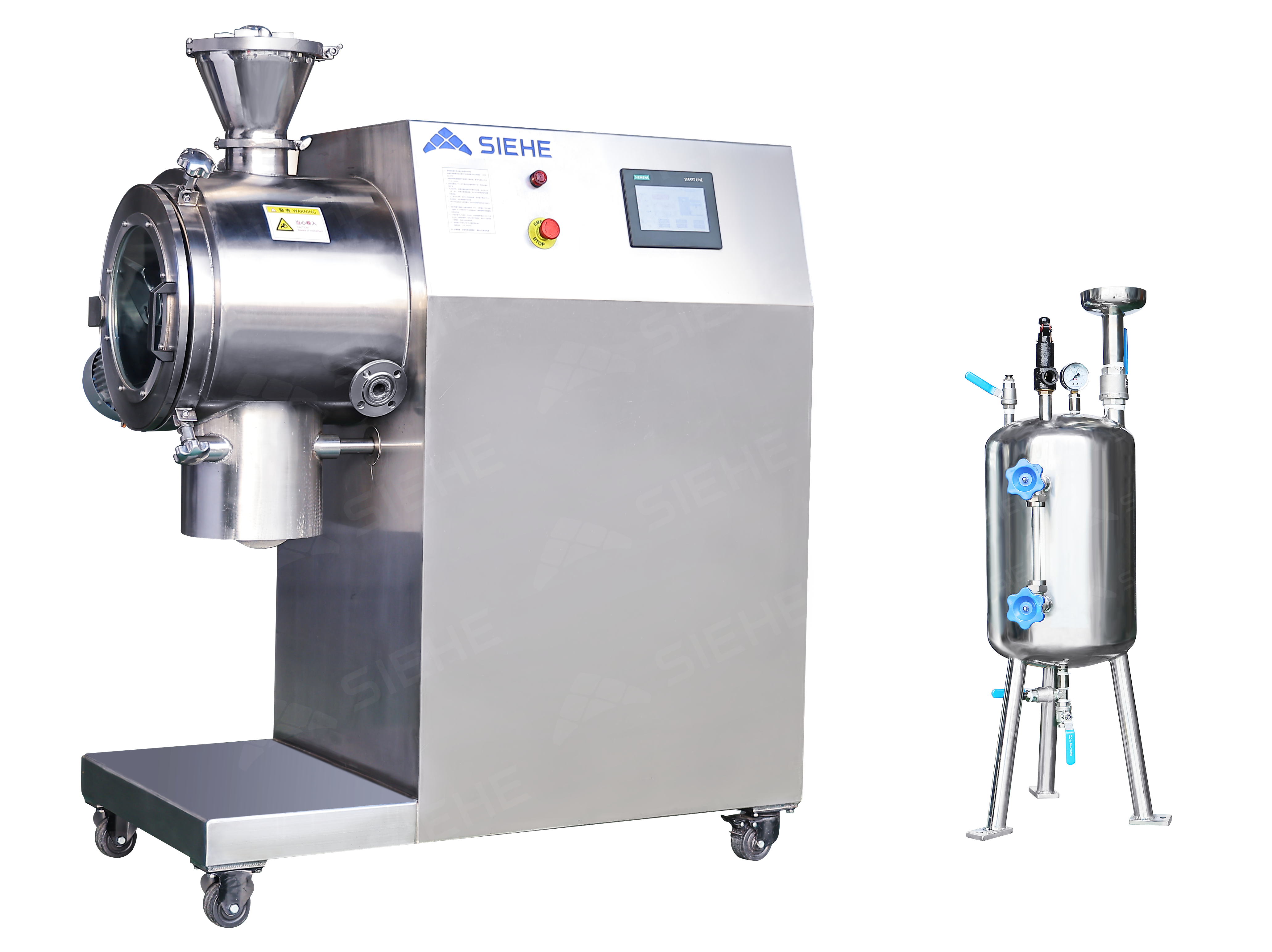

When a small amount of liquid is added, a liquid spray device can be configured, which is more conducive to the uniform dispersion and mixing of liquid in the powder. The spray system consists of three basic modules: pressure source, liquid storage tank and nozzle.
Optional automatic control system, HMI+PLC control mode, with parameter saving and output, easy to save test data and statistics.
Gas explosion proof or dust explosion proof type can be customized.
-
Reliable drive configuration
According to the nature of the material, starting mode, and mixing mode, different capacities, different power, different output speed drive devices are configured. The drive motor adopts international first-class motor suppliers, such as SIEMENS, ABB, SEW, etc., which can use direct connection, sprocket connection, belt connection, etc., for torque output.
Commonly used K series spiral cone gear reducer (or H series gear box reducer), with high selection coefficient, rated torque, high transmission efficiency, safety, long life, low operating noise, low failure rate, easy maintenance and other advantages.
Technical Parameter
| Model | Voltage | Motor Power
(kw) |
Shaft Speed
（rpm） |
Fly-cutter speed
（rpm） |
Capacity
(L) |
Discharge port | Material |
| SHDH-50 | 380V/50HZ | 2.2+1.5 | 0-150 | 0-3000 | 15-30 | 90*90mm
Pneumatic flap valve |
SS304/SS316L |
