SIEHE's Automatic Adhesive Complete Production Line Empowered Intelligent Manufacturing Upgrade for Renowned Turkish Adhesive Company

Recently, SIEHE Group successfully delivered the Automatic Adhesive Complete Production Line customized for a renowned Turkish adhesive company.This marks the first collaboration between the two parties. Previously, SIEHE had already established cooperative relationships with multiple industry leaders in Turkey through its sophisticated technology and comprehensive service system, including a strategic partnership formed with SEL, the largest local adhesive manufacturer.

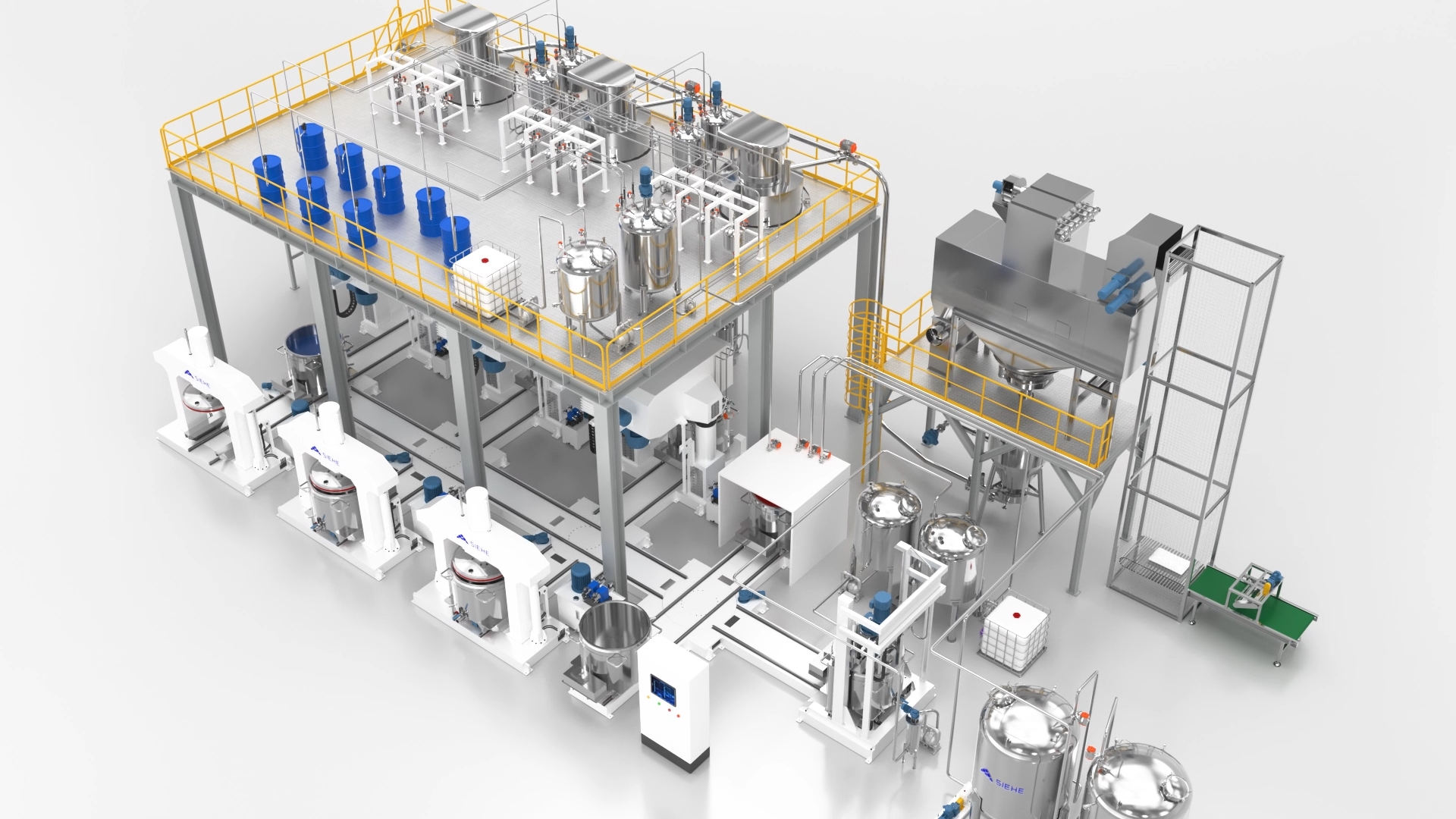

The production line integrates multiple systems including automatic batching, mixing, material discharging, cleaning and automatic tank moving. With advanced HMI intelligent control system, all systems collaborate together to achieve full automation of production processes, which greatly improving production efficiency and product quality stability.

The core technological highlights include:

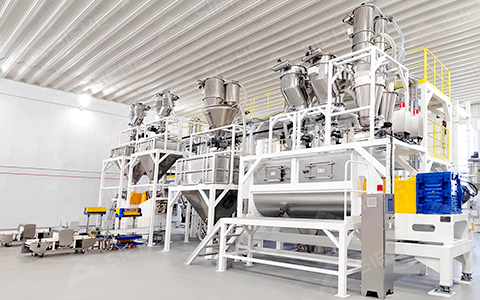

Automatic Batching System

Powder raw material bags after being flattened are lifted to the higher position first, and then enter into small-bag automatic unpacking station. The unpacking process is operated in an enclosed room with a dust collector. The materials fall into the delivery tank through a hopper and are conveyed to the intermediate bin by positive pressure dense phase conveying. The intermediate bin is equipped with Mettler-Toledo brand weighing modules for re-weighing. Liquid raw materials are pumped and stored in their respective storage tanks. The additives are transferred to respective storage tanks by drum pumps. Each storage tank is equipped with a weighing system for auto-replenishment.

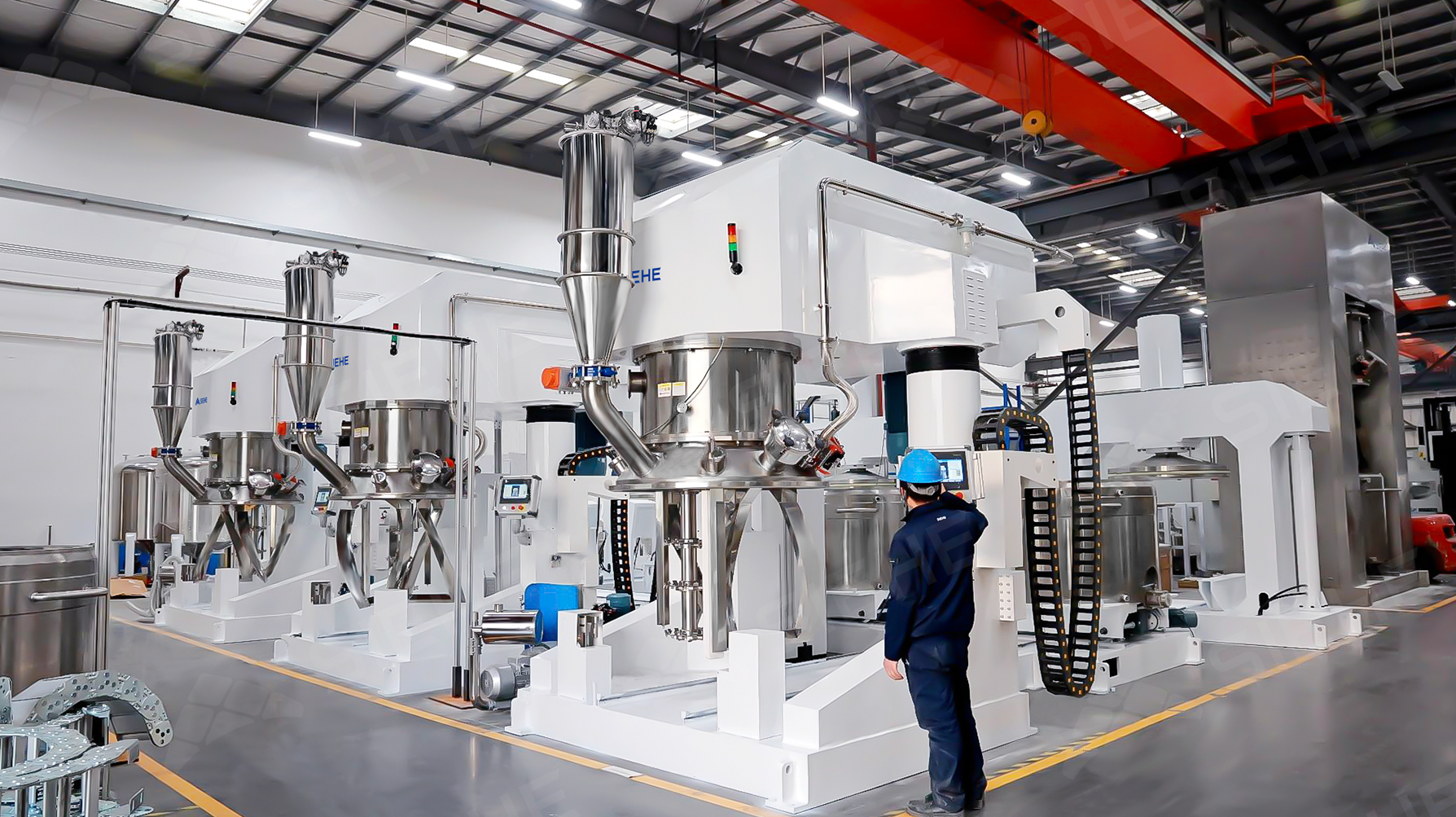

Dispersing Mixing System

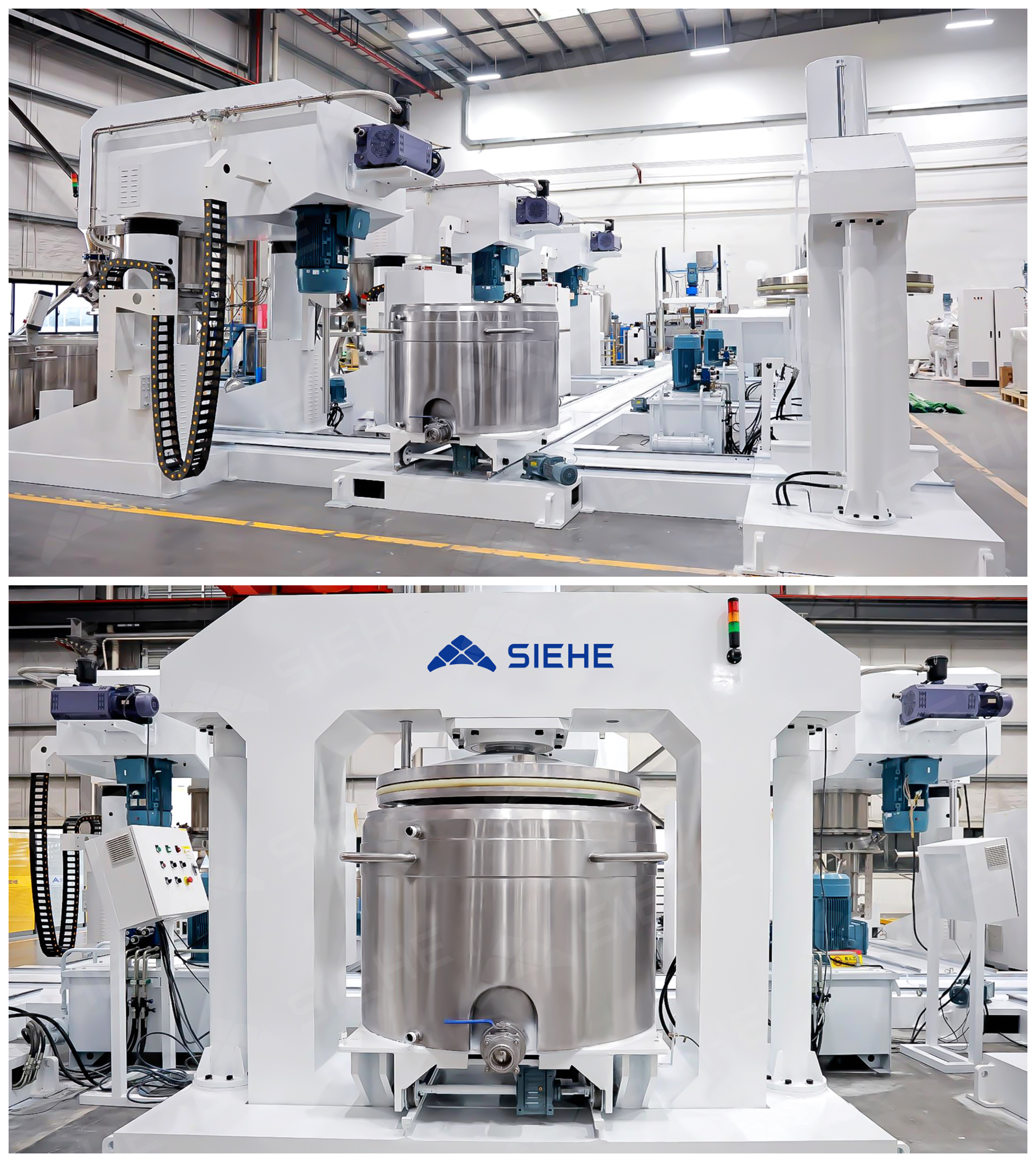

The production line is cored on three Double Planetary Dispersing Mixers, capable of processing materials with viscosities up to 10,000 Pa.s. The screw frame agitator is precision casted and CNC-machine, which minimizes the clearance between the agitator and the agitator, between the agitator and the tank wall, between the agitator and the tank bottom; and it provides excellent kneading effect, uniformity and mixing efficiency for high-viscosity materials.

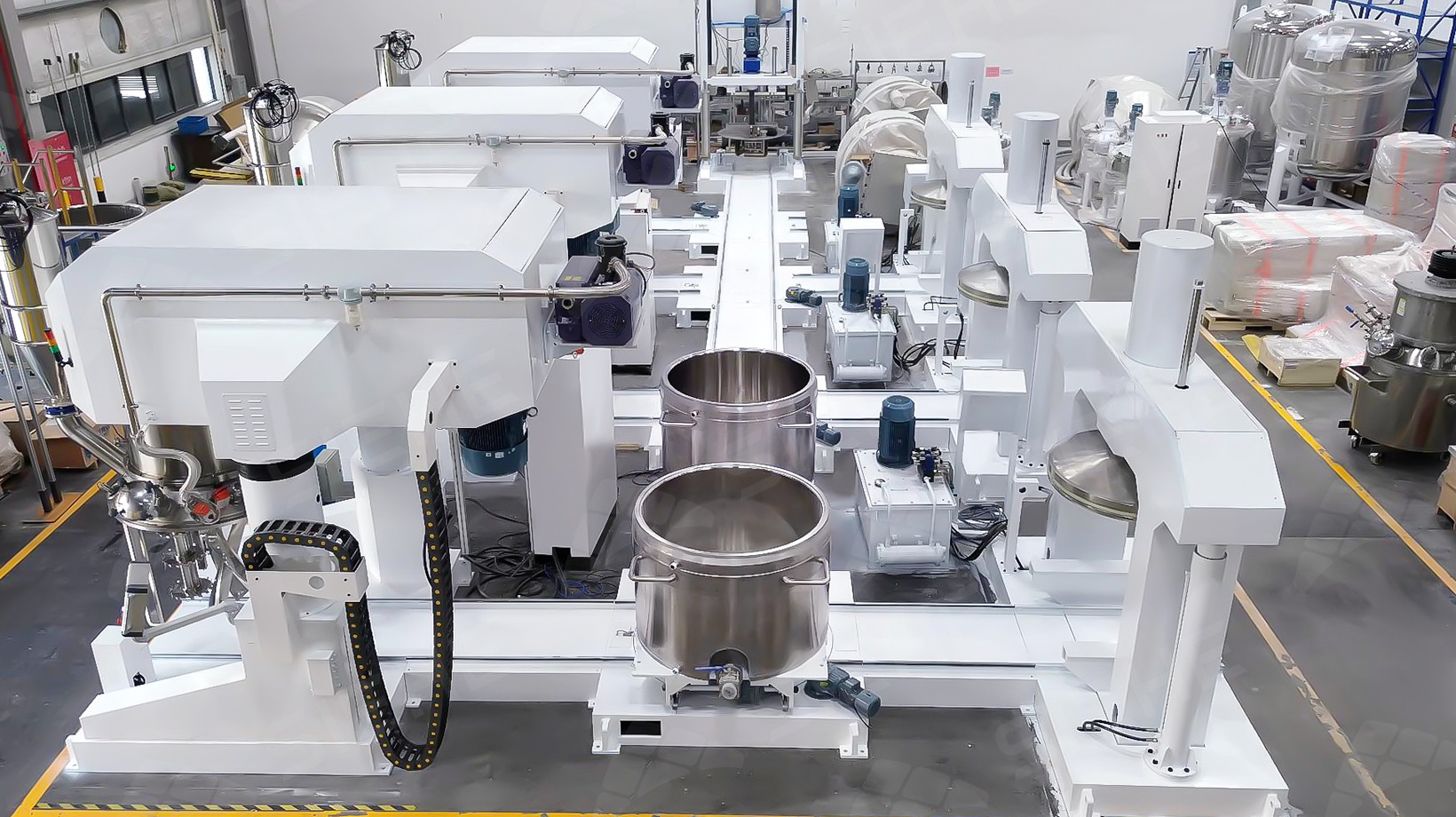

Track System

It is used to connect  planetary mixers, extruders, and cleaning machines with a compact footprint that optimizes workspace. The track is equipped with a turntable for moving and rotating the mixing tank. Through the track system and its drive mechanism, the mixing tank can be automatically transferred to workstations such as discharging and cleaning without manual intervention.The operating area is equipped with safety barriers to protect personnel from all moving parts and ensure operational safety.

Cleaning system

After material discharging, the empty material tank moves to the turntable position, rotates and moves to the cleaning position. The automatic container washing machine ensures 360° cleaning without any dead corners until the tank is thoroughly washed.

The successful delivery of this Automatic Adhesive Complete Production Line has not only empowered the Turkish partner to achieve a quantum leap in production efficiency, but also marked a solid step forward in the globalization of China's intelligent manufacturing technology.
